Product Detailed Parameters
- Description：CONN HEADER SMD 3POS 2.54MM
- Series：EconoStik™ 10129380
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR)
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：3
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

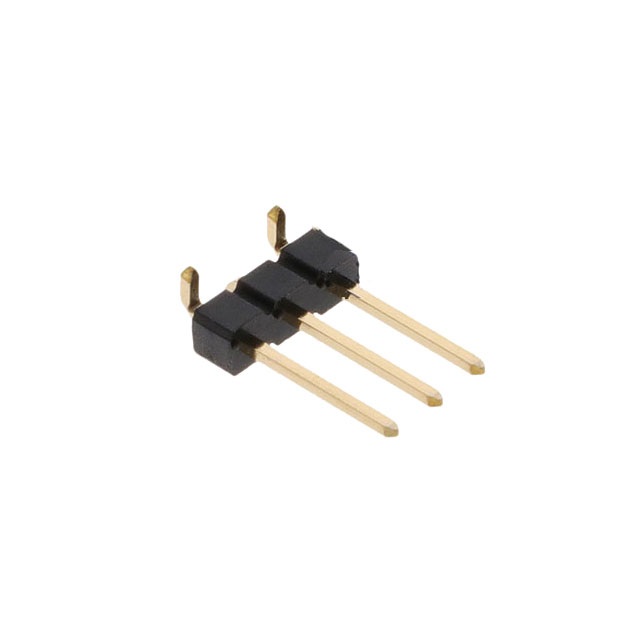

The Amphenol ICC (FCI) part number 10129380-903002ALF is a rectangular header connector belonging to the Econostik series. It features a single row of three positions with a 2.54mm pitch, designed for surface mount termination. The component utilizes square male pin contacts and is rated for a current of 3A and a voltage of 110VDC. Constructed with high-temperature thermoplastic housing, it supports general purpose, industrial, medical, and telecommunications applications.
Feature Summary
- Surface mount design for automated assembly processes
- Single row configuration with three contact positions
- Econostik series construction for reliable connectivity
Applications
- General Purpose Electronics
- Industrial Equipment
- Medical Devices
- Telecommunications Systems
Procurement Notes
Verify the specific ordering suffix against official manufacturer documentation to ensure correct packaging and material specifications. Confirm that the requested variant matches the required contact shape and mounting orientation. Cross-reference the base product number with authorized distributors to validate authenticity and traceability before finalizing procurement orders.
Selection Notes
Select this component when a low-profile, single-row header is required for surface mount PCB layouts. Ensure the design accommodates the 2.54mm pitch and 3A current rating. Verify compatibility with mating pins regarding contact geometry and housing height constraints within the target electronic assembly.
Part Context
This connector is part of the Amphenol FCI Econostik family, which provides cost-effective interconnect solutions. The brand transition from FCI to Amphenol ICC maintains the established product lineage. This specific header serves as a standard interface solution for board-to-wire or board-to-board connections in commercial electronics.
Replacement Considerations
Direct replacements must match the 2.54mm pitch, 3-position count, and surface mount orientation. Verify that alternative headers maintain identical current ratings and housing materials to ensure mechanical and electrical compatibility within the existing circuit design.
