Product Detailed Parameters

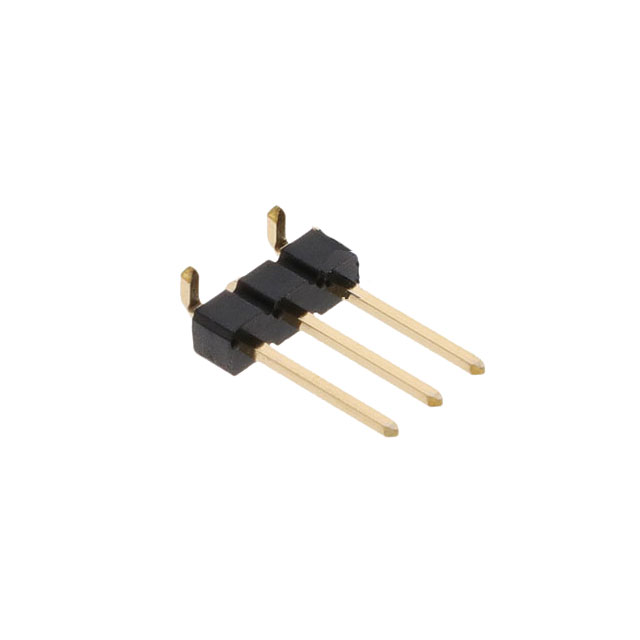

- Description：CONN HEADER SMD 3POS 2.54MM
- Series：EconoStik™ 10129380
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：3
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129380-903002BLF is a surface-mount header connector belonging to the EconoStik series. It features a 2.54 mm pitch and consists of three positions arranged in a single row. The component utilizes male pins for board-to-board interconnection and employs solder termination for secure attachment to the printed circuit board.
Feature Summary
- Surface-mount design facilitates automated assembly processes
- EconoStik series construction provides cost-effective connectivity solutions
- Male pin configuration ensures reliable mating with corresponding receptacles
Applications
- Industrial control systems
- Test equipment interfaces
- General-purpose board-to-board connections
Procurement Notes
Verify the specific revision status and RoHS compliance details directly with the manufacturer or authorized distributors, as product specifications may evolve. Confirm that the surface-mount footprint matches the target PCB layout requirements before finalizing procurement decisions for this specific three-position header.
Selection Notes
Select this component when a low-profile, surface-mount solution is required for low-current signal transmission. The 2.54 mm pitch offers standard spacing compatibility with many existing designs. Ensure the application environment remains within the thermal limits defined by the plastic material's flammability rating during soldering and operation.
Part Context
This connector is part of the broader EconoStik family from Amphenol ICC (FCI), which focuses on economical interconnect solutions. The series typically supports up to fifty mating cycles, making it suitable for applications where frequent disconnection is not a primary requirement. It serves as a compact alternative to through-hole headers in space-constrained industrial assemblies.
Replacement Considerations
Direct replacements must match the 2.54 mm pitch, three-position count, and surface-mount orientation. Verify that substitute headers maintain compatible pin dimensions and housing materials to ensure proper mechanical fit and electrical continuity within the existing system architecture.
