10129380-904001ALF

$0.22

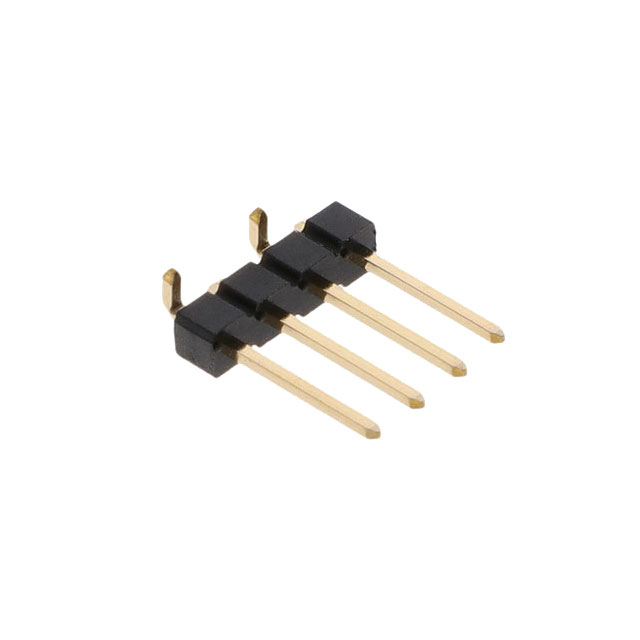

Description：CONN HEADER SMD 4POS 2.54MM
Series：EconoStik™ 10129380
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:41b287b74f94 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER SMD 4POS 2.54MM
Series：EconoStik™ 10129380
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：4
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：110VDC

Download product information

10129380-904001ALF

Overview

The Amphenol ICC (FCI) part number 10129380-904001ALF is a 4-position, single-row, unshrouded pin header connector designed for surface mount applications. It features a 2.54mm (0.100 inch) pitch and utilizes thermoplastic insulation rated UL94 V-0 in black color. The component supports an operating temperature range of -55°C to 105°C and is suitable for board-to-board or wire-to-board connections. This EconoStik™ series header supports up to 50 mating cycles.

Feature Summary

Surface mount design for automated assembly
Single-row unshrouded pin header configuration
Thermoplastic insulation with high flammability rating

Applications

Industrial control systems
Test equipment interfaces
Board-to-board interconnections

Procurement Notes

Verify the specific manufacturer datasheet for complete electrical ratings and mechanical dimensions before integration. Confirm that the surface mount footprint matches the target PCB layout requirements. Ensure compliance with RoHS standards as indicated by the ALF suffix. Check current availability status as electronic components may experience supply fluctuations.

Selection Notes

Select this component when a low-profile, cost-effective header solution is required for signal transmission. The 2.54mm pitch provides standard spacing compatibility with common ribbon cables and jumper wires. Consider the 50-cycle mating limit for applications requiring frequent disconnection. Evaluate thermal management needs against the specified operating temperature range.

Part Context

This connector belongs to the Amphenol FCI EconoStik™ series, which focuses on providing reliable, cost-efficient interconnect solutions. The brand transition from Framatome Connectors International to Amphenol ICC maintains product lineage while expanding global distribution networks. This specific model represents a standard through-hole compatible surface mount variant within the broader header portfolio.
