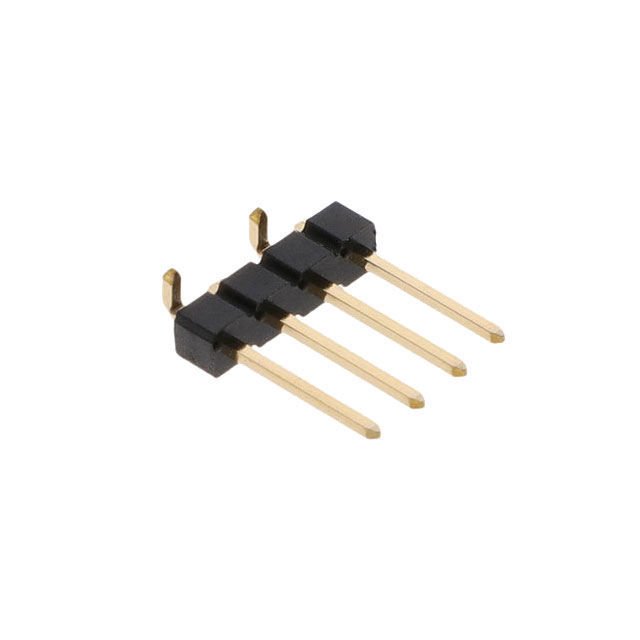

10129380-904001BLF

Description：CONN HEADER SMD 4POS 2.54MM
Series：EconoStik™ 10129380
Mfr：Amphenol ICC (FCI)
Package：Bulk

SKU:1146a6734655 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER SMD 4POS 2.54MM
Series：EconoStik™ 10129380
Mfr：Amphenol ICC (FCI)
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：4
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：110VDC

Download product information

10129380-904001BLF

Overview

The Amphenol ICC (FCI) part number 10129380-904001BLF is a surface mount header connector designed for board-to-board applications. It features a 2.54mm pitch and contains 4 positions arranged in a single row. The component utilizes gold contact plating to ensure reliable signal transmission and corrosion resistance. This specific variant is RoHS compliant, indicating it is lead-free and suitable for modern environmental standards. The connector is engineered for vertical mounting on printed circuit boards, providing a secure mechanical interface for mating with corresponding receptacles or cables.

Feature Summary

Surface mount termination for automated PCB assembly
Gold-plated contacts for enhanced conductivity
RoHS compliant construction

Applications

Consumer electronics assemblies
Industrial control systems
Telecommunications equipment

Procurement Notes

Verify the exact suffix BLF against the manufacturer's current datasheet to confirm material specifications and compliance status. Ensure the ordering quantity matches the standard packaging configuration provided by authorized distributors. Confirm that the lead-free designation aligns with project requirements before finalizing procurement orders.

Selection Notes

Select this component when a low-profile, four-position connection is required for high-reliability applications. The 2.54mm pitch offers compatibility with standard wiring harnesses and daughter cards. Consider the surface mount profile for space-constrained designs where vertical height is limited.

Part Context

This connector belongs to the broader portfolio of interconnect solutions offered by Amphenol ICC (FCI). The company provides extensive engineering support and design services to develop custom connectivity solutions. This specific header is part of their range of board-to-board connectors intended for robust electrical connections in demanding environments.
