Product Detailed Parameters

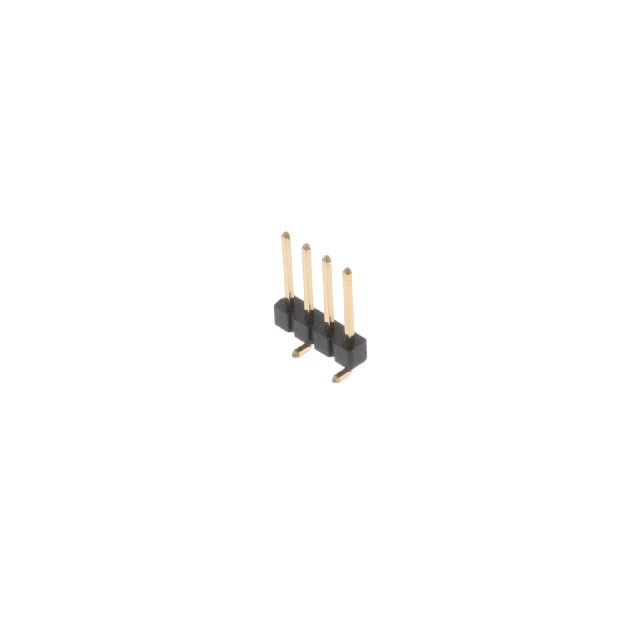

- Description：CONN HEADER SMD 4POS 2.54MM
- Series：EconoStik™ 10129380
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR),Cut Tape (CT)
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：4
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129380-904002ALF is a surface mount header connector belonging to the EconoStik series. It features four positions with a single row configuration and a 0.100-inch (2.54mm) pitch. The contacts are constructed from copper alloy, providing a current rating of 3A. Designed for vertical through-hole mounting on printed circuit boards, this unshrouded header utilizes brass alloy pins. The component operates within a temperature range of -55°C to +105°C and complies with RoHS standards.
Feature Summary
- Surface mount construction for automated PCB assembly
- Single row unshrouded design for compact integration
- Copper alloy contact material ensuring reliable conductivity
Applications
- General electronic equipment interconnections
- Consumer electronics board-to-board connections
- Industrial control system signal routing
Procurement Notes
Verify the specific ordering suffix against official manufacturer documentation to confirm exact pin count, pitch, and termination style. Ensure compatibility with standard surface mount reflow processes. Confirm that the selected variant meets all required environmental and electrical specifications for the target application before finalizing procurement orders.
Selection Notes
Select this component when a low-profile, surface mount header is required for high-density applications. The 2.54mm pitch offers a balance between spacing and density. Consider the unshrouded design for space-constrained layouts where mating connectors do not require side guidance. Verify that the 3A current rating and operating temperature range align with the system's thermal and power requirements.
Part Context
This connector is part of the Amphenol FCI EconoStik line, which focuses on cost-effective connectivity solutions. The series provides reliable performance for various commercial and industrial applications. As an Amphenol product, it adheres to strict quality standards for durability and signal integrity in demanding electronic environments.
