Product Detailed Parameters

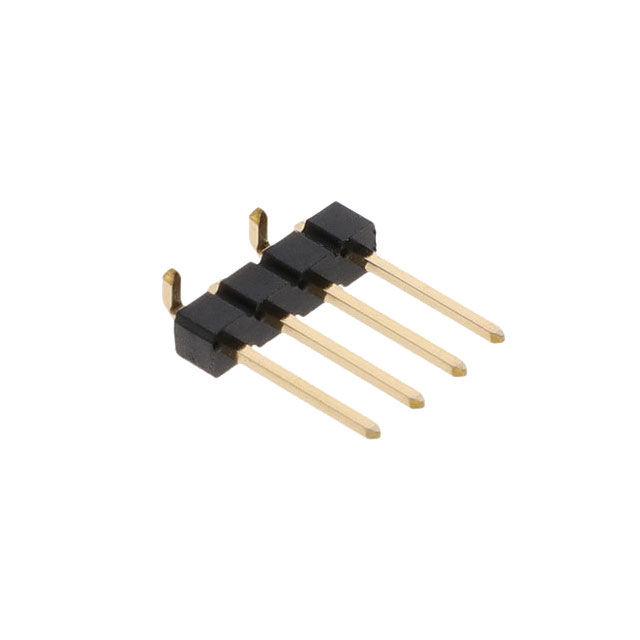

- Description：CONN HEADER SMD 4POS 2.54MM
- Series：EconoStik™ 10129380
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：4
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129380-904002BLF is a header connector from the EconoStik series. It features a surface mount installation style with a right-angle orientation. The connector has 4 positions arranged in a single row, utilizing a 0.100 inch (2.54mm) pitch. The contacts are male pins with gold plating. The housing material is thermoplastic and rated UL94 V-0 for flammability. The operating temperature range spans from -55°C to +105°C.
Feature Summary
- Supports up to 50 mating cycles for reliable board-to-board connections
- EconoStik design provides cost-effective connectivity solutions
- Surface mount termination ensures secure PCB attachment
Applications
- Industrial control systems
- Test equipment interfaces
- General board-to-board interconnects
Procurement Notes
Verify component authenticity through authorized channels due to discontinued status. Confirm RoHS compliance requirements against specific project standards as this item may not meet current regulations. Request manufacturer documentation for final assembly specifications and handling instructions prior to integration.
Selection Notes
Select this component for applications requiring low-profile surface mount headers with standard 2.54mm spacing. Ensure PCB layout accommodates right-angle mounting constraints. Verify that the 4-position count aligns with signal or power distribution needs without requiring additional parallel connectors.
Part Context
This connector belongs to the Amphenol FCI EconoStik family, designed for general-purpose electronic assemblies. The brand transition from Framatome Connectors International to Amphenol ICC maintains product lineage while updating support structures. This specific model represents a standard pin strip solution within the broader rectangular connector portfolio.
Replacement Considerations
No public confirmed substitute part numbers are available. Consider equivalent 4-position SMD headers from other manufacturers if supply chain continuity is required, ensuring identical pitch and mechanical dimensions.
