Product Detailed Parameters
- Description：CONN HEADER SMD 5POS 2.54MM
- Series：EconoStik™ 10129380
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR)
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：5
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

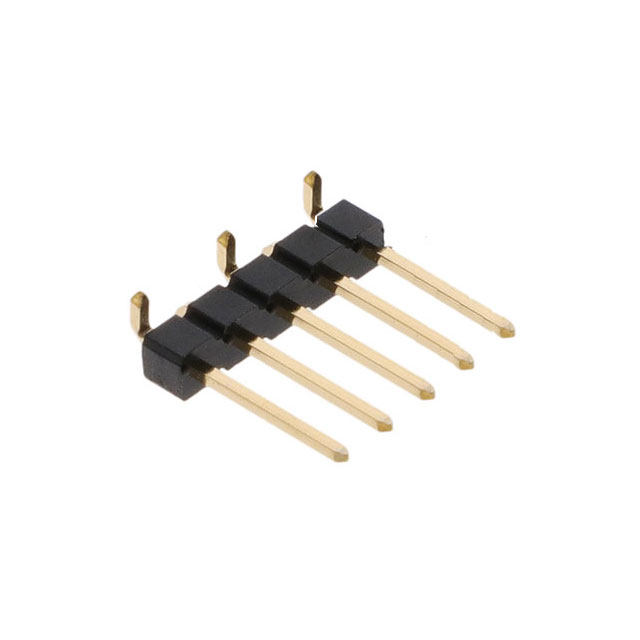

The Amphenol ICC (FCI) 10129380-905001ALF is a surface-mount header connector from the Minitek series. It features a 5-position configuration with a 2.54mm pitch and operates at a current rating of 3A and voltage rating of 110VDC. The component utilizes gold GXT™ contact plating for enhanced conductivity and corrosion resistance. Designed for vertical mounting, it supports general purpose, industrial, medical, and telecommunications applications.
Feature Summary
- Utilizes gold GXT™ contact plating to ensure reliable signal transmission and long-term durability in demanding environments.
- Features a compact surface-mount design suitable for high-density PCB layouts and automated assembly processes.
- Engineered for stable performance across general purpose, industrial, medical, and telecommunications sectors.
Applications
- General purpose electronic equipment
- Industrial control systems
- Medical devices
- Telecommunications infrastructure
Procurement Notes
Verify the specific suffix against official Amphenol documentation to confirm exact pin count and plating specifications. Ensure compatibility with standard SMT reflow profiles. Cross-reference the datasheet for mechanical dimensions and thermal requirements before integration into final assemblies.
Selection Notes
Select this component for applications requiring a low-profile, surface-mount header with robust contact integrity. Consider the 2.54mm pitch for standard spacing needs and the 3A current rating for moderate power signals. Evaluate board space constraints against the vertical height profile.
Part Context
This part belongs to the Minitek series, characterized by 2.54mm pitch connectors designed for high-volume manufacturing. The series offers various configurations including headers and receptacles, providing versatile interconnect solutions for modern electronics requiring reliable board-to-board or cable-to-board connections.
Replacement Considerations
Consult official substitution guides for equivalent Minitek series parts with matching pin counts and plating options. Verify that alternative components maintain identical mechanical footprint and electrical ratings to ensure seamless integration without redesigning the PCB layout.
