Product Detailed Parameters
- Description：CONN HEADER SMD 5POS 2.54MM
- Series：EconoStik™ 10129380
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：5
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

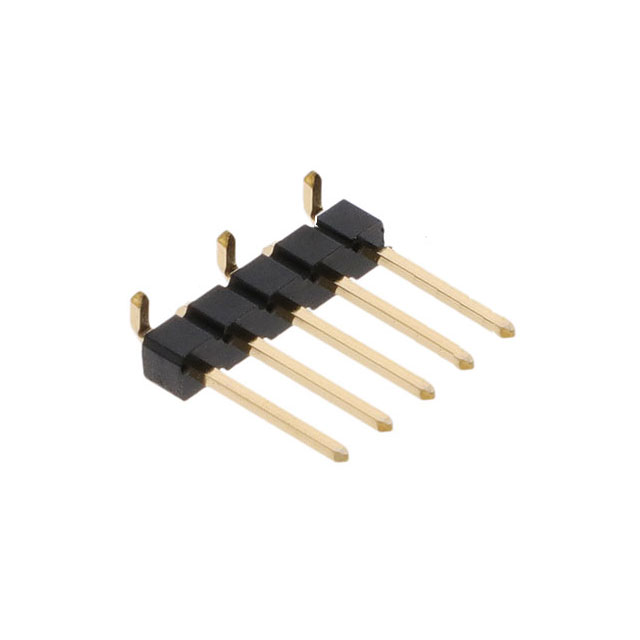

The Amphenol ICC (FCI) part number 10129380-905001BLF is a surface mount header connector designed for board-to-board or cable applications. It features a single row with five positions and a pitch of 0.100 inches (2.54mm). The housing material is thermoplastic, and the contacts are gold-plated to ensure reliable signal transmission. Rated for a maximum current of 3A and a voltage of 110VDC, this component offers an insulation resistance of 1 GOhm. It is unlatched and suitable for standard PCB assembly processes.
Feature Summary
- Surface mount technology for automated PCB assembly
- Gold-plated contacts for corrosion resistance
- Thermoplastic housing for structural integrity
Applications
- Consumer electronics interconnects
- Industrial control boards
- Communication equipment modules
Procurement Notes
Verify the exact pin count and pitch against schematic requirements before ordering. Confirm that the surface mount footprint matches the PCB design guidelines provided by the manufacturer. Ensure compatibility with reflow soldering profiles specified in the datasheet. Check for any specific handling instructions regarding moisture sensitivity levels if applicable.
Selection Notes
Select this component when a low-profile, single-row header is required for space-constrained designs. The 2.54mm pitch is standard for many legacy and modern systems. Consider the 3A current rating for power distribution needs within the circuit. Verify that the unlatched design meets the mechanical retention requirements of the final assembly.
Part Context
This connector belongs to the general header family from Amphenol ICC (FCI), which provides a wide range of interconnection solutions. The brand is known for high-reliability connectors used in various electronic markets. This specific model represents a standard through-hole or surface mount option within their extensive catalog of rectangular connectors.
Replacement Considerations
Direct substitutes may include other 5-position, 2.54mm pitch SMD headers from different manufacturers. Ensure that the replacement part matches the height, contact plating, and thermal characteristics. Verify that the mechanical dimensions are identical to avoid PCB layout changes.
