Product Detailed Parameters
- Description：CONN HEADER SMD 5POS 2.54MM
- Series：EconoStik™ 10129380
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR),Cut Tape (CT)
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：5
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

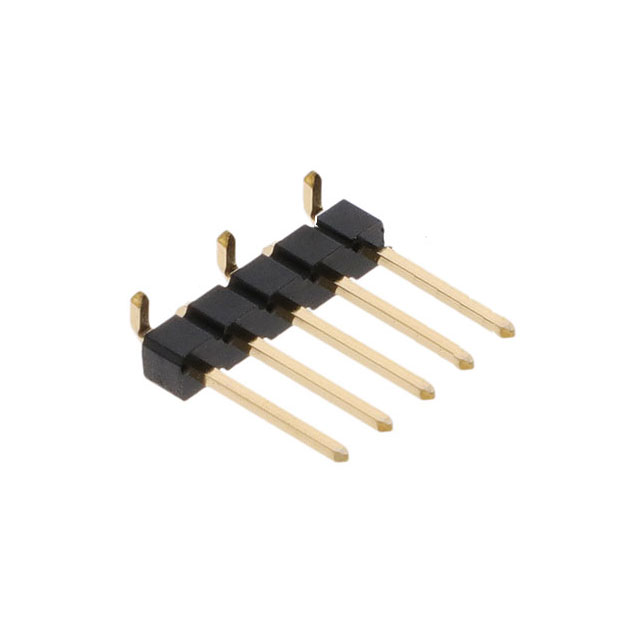

The 10129380-905002ALF is a rectangular connector component manufactured by Amphenol ICC (FCI). It features male pins with a current rating of 3A and a voltage rating of 110VDC. The connector utilizes surface mount technology for board attachment and employs solder as the termination method. Contact geometry is defined as square, arranged in a single row configuration.
Feature Summary
- Surface mount construction for automated PCB assembly
- Square contact shape design for reliable mating
- Single row pin arrangement for compact routing
Applications
- General Purpose electronic interconnects
- Industrial control system connections
- Medical device signal transmission
- Telecommunications equipment interfaces
Procurement Notes
Verify the complete part number including the suffix ALF to ensure correct material specifications and compliance status. Confirm that the ordering quantity aligns with the Tape & Reel packaging format provided by the distributor. Cross-reference the manufacturer product identifier against official datasheets to validate authenticity before finalizing procurement orders.
Selection Notes
Select this component when surface mount integration is required for low-voltage signal applications. Ensure the PCB footprint matches the single-row square pin layout. Verify that the 3A current capacity meets the circuit requirements. Consider the 110VDC rating for insulation compatibility within the target electrical environment during design phase.
Part Context
This component belongs to the broader category of rectangular connectors produced by Amphenol ICC (FCI). It serves as a male pin header solution designed for direct board mounting. The product supports various industrial sectors requiring robust interconnect solutions with standardized pin configurations.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Evaluate mechanical fit and electrical ratings if considering alternative suppliers.
