Product Detailed Parameters

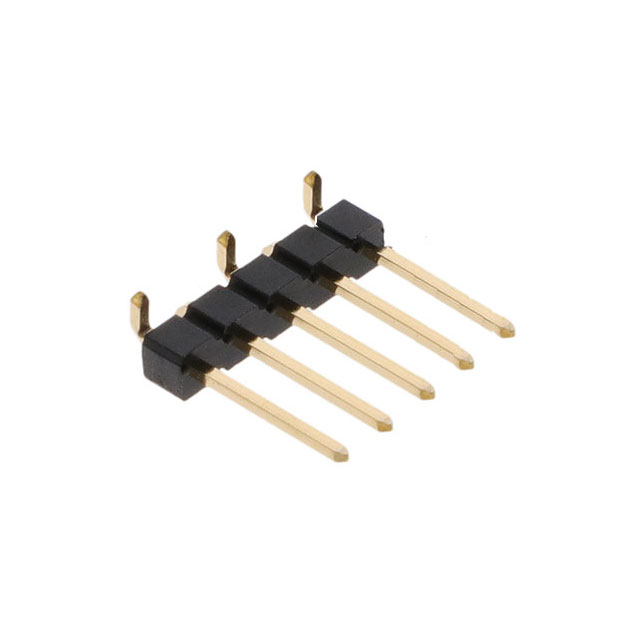

- Description：CONN HEADER SMD 5POS 2.54MM
- Series：EconoStik™ 10129380
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：5
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129380-905002BLF is a surface-mount header connector belonging to the Econostik series. It features a single row of five positions with a 2.54mm pitch. The component utilizes thermoplastic insulation rated UL94 V-0 for flammability and operates within a temperature range of -55°C to 105°C. The housing color is black, and it is supplied in bulk packaging.
Feature Summary
- Surface-mount vertical termination design
- Single-row configuration with five signal positions
- Thermoplastic insulation material
Applications
- General purpose electronic interconnects
- Industrial equipment signal routing
- Medical device circuit connections
- Telecommunications hardware interfaces
Procurement Notes
Verify the exact suffix BLF against current manufacturer documentation to confirm plating specifications and compliance status. Ensure surface-mount footprint compatibility with assembly equipment. Confirm RoHS compliance requirements match project standards before finalizing procurement orders.
Selection Notes
Select this component for applications requiring low-profile surface-mount headers with standard 2.54mm spacing. Consider the single-row layout for space-constrained designs. Verify thermal resistance during soldering processes due to the thermoplastic insulation material properties.
Part Context
This connector belongs to the Econostik line from Amphenol ICC (FCI), designed for cost-effective wire-to-board or board-to-board connections. The series emphasizes reliable electrical performance in compact form factors suitable for high-volume manufacturing environments.
Replacement Considerations
Check for direct cross-reference part numbers from Amphenol ICC (FCI) with identical pin counts and mounting styles. Verify mechanical dimensions and electrical ratings match original requirements before substitution.
