Product Detailed Parameters

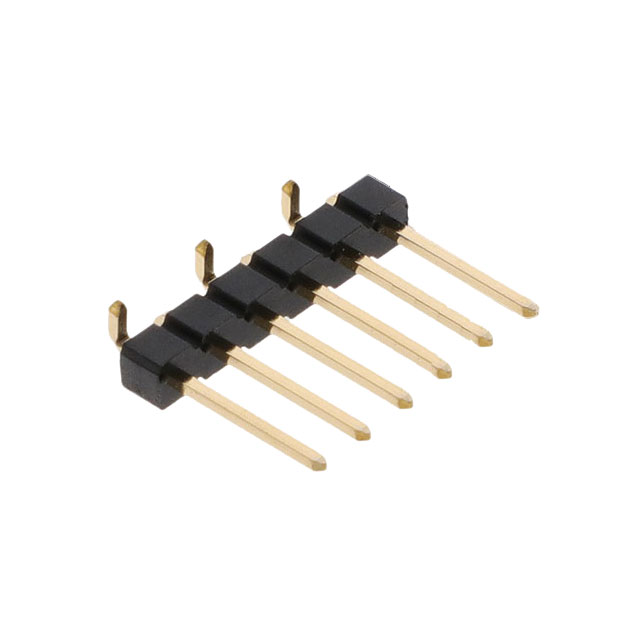

- Description：CONN HEADER SMD 6POS 2.54MM
- Series：EconoStik™ 10129380
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：6
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129380-906001BLF is a rectangular connector header designed for surface mount technology. It features six male pins arranged in a single row with a 2.54 mm (0.100 inch) contact spacing. The component utilizes a cuttable solder termination method, allowing for flexible board layout configurations during assembly. This specific variant is RoHS compliant and lead-free, ensuring adherence to environmental standards for electronic manufacturing.
Feature Summary
- Surface mount design for automated PCB assembly
- Cuttable construction for customizable pin counts
- Male pin configuration for board-to-board or cable connections
Applications
- Board-to-board interconnects
- Cable-to-board connections
- General-purpose electronic circuit integration
Procurement Notes
Verify the exact suffix BLF against official manufacturer documentation to confirm compliance status and physical dimensions. Ensure that the cuttable header format aligns with the target PCB footprint requirements before procurement. Cross-reference the datasheet for specific reflow soldering profiles to guarantee joint integrity.
Selection Notes
Select this component when a low-profile, surface-mount header with flexible pin count options is required. The 2.54 mm pitch ensures compatibility with standard through-hole and surface-mount mating connectors. Consider the cuttable feature if inventory management of various pin counts needs to be consolidated into a single stock keeping unit.
Part Context
This connector belongs to the broader family of Amphenol ICC (FCI) rectangular headers. These components are widely utilized in industrial and commercial electronics where reliable signal transmission and power distribution are critical. The series supports various termination styles and mounting orientations to accommodate diverse mechanical constraints.
Replacement Considerations
Direct substitutes include other 6-position, 2.54 mm pitch surface mount headers from Amphenol ICC (FCI), such as the 10129381-906001BLF for through-hole variants. Verify mechanical height and contact material specifications when evaluating alternative manufacturers' products to ensure functional equivalence.
