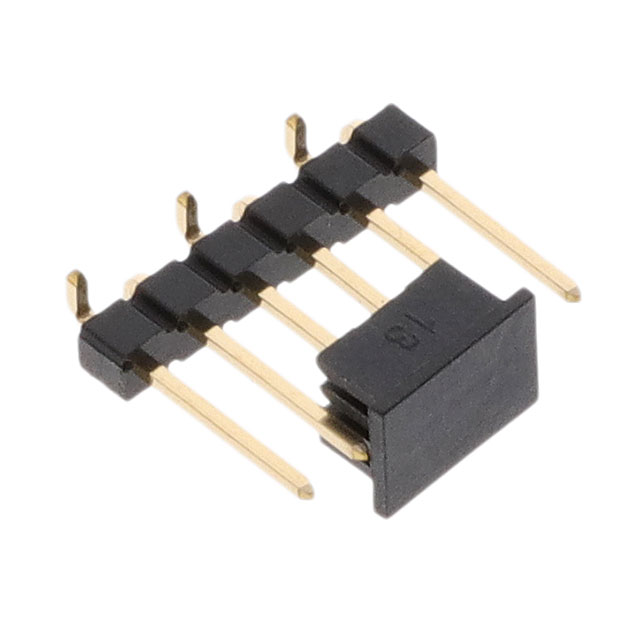

10129380-906002ALF

$0.32

Description：CONN HEADER SMD 6POS 2.54MM
Series：EconoStik™ 10129380
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:fc4784cb5a26 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER SMD 6POS 2.54MM
Series：EconoStik™ 10129380
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：6
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.318" (8.08mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：110VDC

Download product information

10129380-906002ALF

Overview

The Amphenol ICC (FCI) part number 10129380-906002ALF is an EconoStik™ series board-to-board connector. It is a single-row, unshrouded vertical header with six positions and a 2.54mm pitch. The component utilizes surface mount termination and features square contact shapes. Constructed with thermoplastic insulation in black, it meets UL94 V-0 flammability ratings. The operating temperature range spans from -55°C to 105°C.

Feature Summary

Supports up to 50 mating cycles for reliable repeated connections
Designed for various board-to-board applications
Features low-cost EconoStik construction

Applications

Industrial control systems
Test equipment
General electronic assemblies

Procurement Notes

Verify the specific manufacturer datasheet for current availability status, as distribution channels may list varying stock levels or obsolescence notices. Confirm that the surface mount package dimensions align precisely with the target PCB footprint design. Ensure compliance with relevant environmental directives applicable to the final assembly region before procurement.

Selection Notes

Select this component when a low-cost, single-row vertical header is required for board-to-board interconnects. The 2.54mm pitch suits standard spacing requirements. Consider the 50-cycle durability limit for applications requiring frequent disconnection. Verify thermal stability within the specified -55°C to 105°C range for the intended operational environment.

Part Context

This connector belongs to the EconoStik family, which provides cost-effective solutions for high-volume electronics. As a product of Amphenol ICC (formerly FCI), it leverages established manufacturing standards for signal integrity and power management in commercial electronic markets. The series focuses on efficient board-to-board connectivity.
