Product Detailed Parameters
- Description：CONN HEADER SMD 6POS 2.54MM
- Series：EconoStik™ 10129380
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：6
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

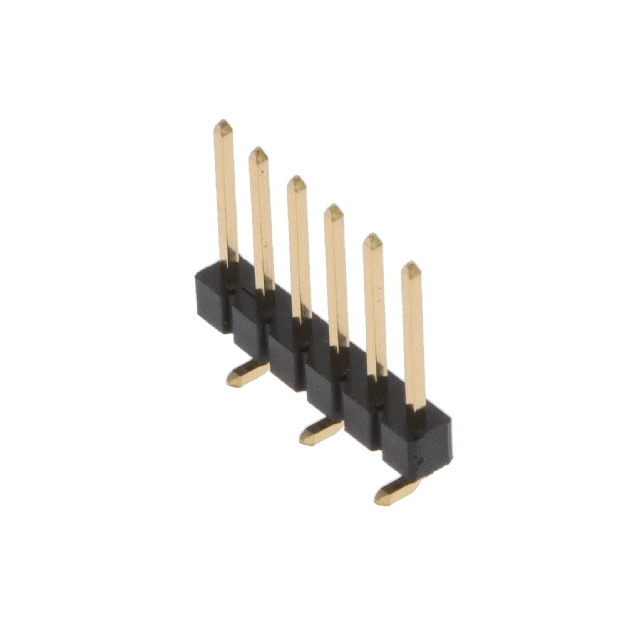

The Amphenol ICC (FCI) part number 10129380-906002BLF is a surface mount header from the EconoStik™ series. It features a single row with six positions and a 0.100-inch (2.54mm) pitch. The connector is designed for board-to-board or cable applications, utilizing a cuttable design for flexible configuration. Constructed with copper alloy contacts and a UL 94 V-0 flammability rated housing, it supports a current rating of 3A.
Feature Summary
- Surface mount construction for automated assembly processes
- Cuttable design allows for customizable contact counts
- Single row configuration with standard 2.54mm spacing
Applications
- Board-to-board interconnections
- Cable to board connections
- General electronic circuit assemblies
Procurement Notes
Verify the specific suffix BLF against official documentation to confirm plating and packaging details. Ensure compatibility with surface mount reflow profiles. Confirm that the cuttable nature aligns with the required pin count for the target design. Check for any RoHS compliance status updates in the latest datasheet revisions.
Selection Notes
Select this component when a low-profile, surface mount header is required for signal or power distribution. The 2.54mm pitch ensures broad compatibility with standard PCB layouts. Consider the 3A current rating for load requirements. The cuttable feature offers inventory flexibility by allowing multiple units from a single strip.
Part Context
This connector belongs to the EconoStik™ series, which provides cost-effective interconnect solutions. Amphenol ICC (FCI) designs these components for high-volume manufacturing environments. The series emphasizes reliable electrical performance while maintaining a compact footprint suitable for modern consumer and industrial electronics.
FAQ
Is the connector cuttable?
Yes, the EconoStik™ series headers are designed to be cuttable, allowing users to separate individual positions as needed.
What is the contact material?
The contacts are made from copper alloy to ensure conductivity and durability.
