10129380-907001ALF

Overview

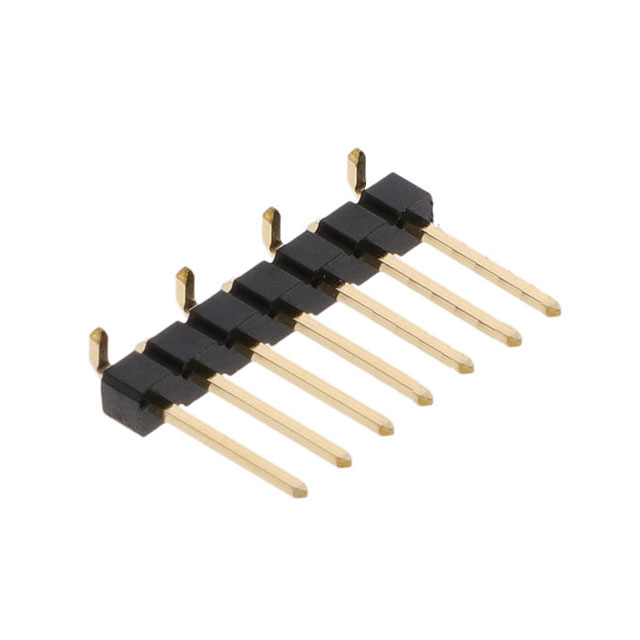

The Amphenol ICC (FCI) 10129380-907001ALF is a rectangular header connector from the EconoStik series. It features a single row with seven positions and a 2.54mm mating pitch. The component utilizes male pin contacts designed for surface mount termination. It supports a current rating of 3A and a voltage rating of 110VDC. The housing is constructed for board-to-board interconnect applications.

Feature Summary

• Surface mount termination for automated assembly integration
• Cuttable design allows for flexible circuit length configuration
• Male pin contact type ensures secure board connection

Applications

• General purpose electronic assemblies
• Industrial control systems
• Medical equipment interfaces
• Telecommunications hardware

Procurement Notes

Verify the specific ordering suffix to confirm the exact reel quantity and tape width specifications required for your pick-and-place machinery. Ensure the RoHS compliance status matches your environmental regulations. Confirm that the surface mount footprint aligns precisely with your PCB design guidelines before finalizing procurement orders.

Selection Notes

Select this component when a low-profile, single-row header is required for surface mounting. The 2.54mm pitch is standard for general interconnect needs. Consider the cuttable feature if variable lengths are necessary within a production run. Evaluate the 3A current rating against the total load requirements of the target circuit application.

Part Context

This part belongs to the Amphenol FCI EconoStik family, which focuses on cost-effective interconnect solutions. The series is engineered for high-volume manufacturing environments. It provides reliable signal transmission for consumer and lighting applications. The product line emphasizes robust performance in commercial electronics markets.

Replacement Considerations

Cross-reference compatible headers from other manufacturers offering identical 2.54mm pitch and 7-position configurations. Verify mechanical dimensions and solder pad layouts to ensure compatibility. Check electrical ratings to confirm equivalent current and voltage handling capabilities for direct substitution.
