Product Detailed Parameters

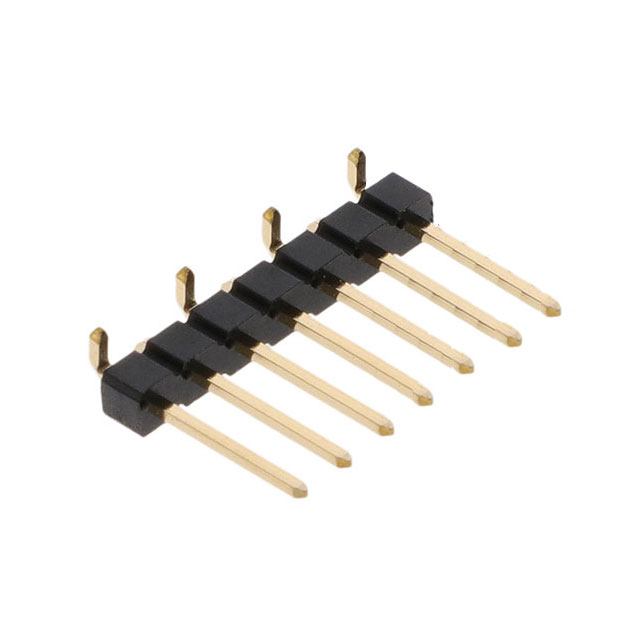

- Description：CONN HEADER SMD 7POS 2.54MM
- Series：EconoStik™ 10129380
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR)
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：7
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The 10129380-907002ALF is a rectangular connector header manufactured by Amphenol ICC (FCI). It features a surface mount mounting type with square contact shapes. The component is designed for single-row configurations and utilizes a 2.54mm pitch. It contains seven positions and is rated for a current of 3A. The product is supplied in tape and reel packaging to facilitate automated assembly processes.
Feature Summary
- Surface mount design for automated PCB assembly
- Single-row configuration with square contacts
- RoHS compliant lead-free construction
Applications
- General electronic equipment interconnects
- Consumer electronics assemblies
- Industrial control circuitry
Procurement Notes
Verify the specific ordering suffix against the official Amphenol datasheet to ensure correct pin count and pitch. Confirm RoHS compliance status and tape & reel specifications match project requirements. Cross-reference the manufacturer part number with authorized distributor catalogs to prevent counterfeit components.
Selection Notes
Select this component for applications requiring surface mount headers with a standard 2.54mm pitch. Ensure the PCB footprint matches the single-row, seven-position layout. Verify that the 3A current rating and operating temperature range meet the system's electrical and environmental demands.
Part Context
This component belongs to the Amphenol ICC (FCI) rectangular connector portfolio. The series provides reliable signal and power connections for board-to-board or cable-to-board interfaces. FCI connectors are widely used in data communication and commercial electronic markets for their durability and signal integrity.
Replacement Considerations
Consult official cross-reference tools for compatible alternatives. Ensure substitute parts maintain identical 2.54mm pitch, seven-position count, and surface mount compatibility. Verify that any replacement meets the same 3A current rating and RoHS standards.
