Product Detailed Parameters

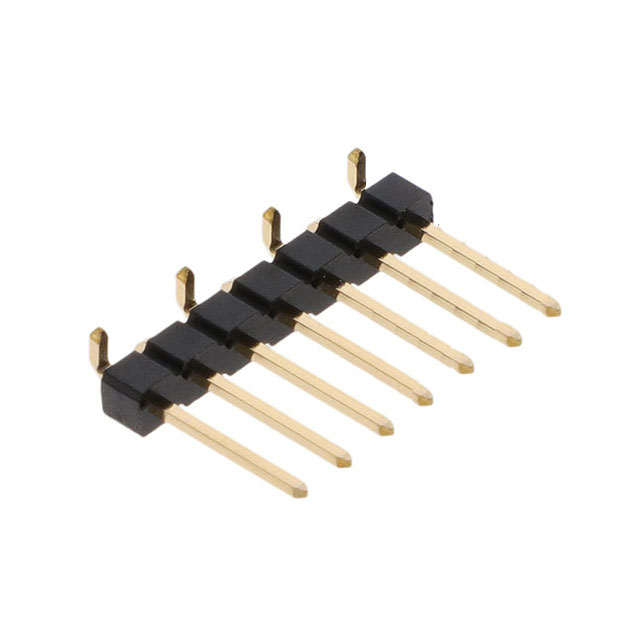

- Description：CONN HEADER SMD 7POS 2.54MM
- Series：EconoStik™ 10129380
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：7
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) 10129380-907002BLF is a surface mount header connector featuring seven positions with a 2.54mm pitch. It utilizes a square pin design and is classified as a male contact type within the EconoStik series. The component supports an operating temperature range of -55°C to 105°C and is packaged in bulk quantities.
Feature Summary
- Surface mount construction for automated PCB assembly
- Square pin geometry for secure mating engagement
- EconoStik series design optimized for cost-effective interconnect solutions
Applications
- Consumer electronic device interconnections
- General purpose circuit board signal routing
- Industrial control system module connections
Procurement Notes
Verify the specific suffix BLF against current manufacturer documentation to confirm plating specifications and material composition. Ensure the ordering quantity aligns with the bulk packaging configuration provided by the supplier. Confirm that the surface mount footprint matches the target PCB design requirements prior to procurement.
Selection Notes
Select this component when a low-profile, surface mount header with a standard 2.54mm spacing is required. The EconoStik series offers a balance of performance and economy suitable for high-volume production environments. Consider the -55°C to 105°C thermal rating for applications involving moderate heat generation or environmental exposure.
Part Context
This part belongs to the Amphenol ICC (FCI) EconoStik family, which focuses on providing reliable interconnect solutions for commercial electronics. The manufacturer, now part of Amphenol ICC, leverages extensive experience in connector technology to deliver products that meet stringent industry standards for signal integrity and mechanical durability.
Replacement Considerations
Direct substitutes must match the 7-position count, 2.54mm pitch, and surface mount orientation. Verify compatibility with existing PCB footprints and mating housing dimensions. Consult official cross-reference lists from Amphenol ICC for validated alternative part numbers.
