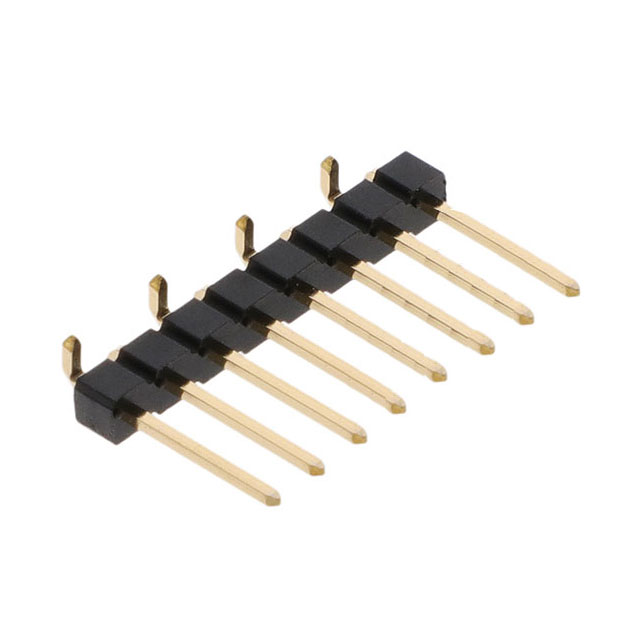

10129380-908002ALF

$0.41

Description：CONN HEADER SMD 8POS 2.54MM
Series：EconoStik™ 10129380
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)

SKU:1276247e23b9 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER SMD 8POS 2.54MM
Series：EconoStik™ 10129380
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：8
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.318" (8.08mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：110VDC

Download product information

10129380-908002ALF

Overview

The Amphenol ICC (FCI) part number 10129380-908002ALF is a rectangular header connector belonging to the EconoStik series. It features an 8-position configuration with a 2.54mm pitch and operates as a single-row surface mount device. The connector supports a voltage rating of 110VDC and a current rating of 3A. Designed for board-to-board applications, it utilizes solder termination and includes male pins with square contact shapes. This component is packaged in tape and reel format for automated assembly processes.

Feature Summary

Supports up to 50 mating cycles for reliable repeated connections
Designed for various industrial control and test applications
Surface mount construction facilitates automated PCB assembly

Applications

Industrial control systems
Test equipment interfaces
Board-to-board interconnections

Procurement Notes

Verify the specific pin count and pitch against the official datasheet to ensure compatibility with the target circuit design. Confirm that the surface mount footprint matches the PCB layout requirements. Check for RoHS compliance status if environmental regulations apply to the end product. Ensure the packaging type aligns with available assembly equipment capabilities.

Selection Notes

Select this component when a cost-effective, durable header is required for moderate current applications. The 2.54mm pitch offers standard spacing for general-purpose electronics. Consider the 50-cycle durability limit for applications requiring frequent disconnection. Evaluate the surface mount profile against spatial constraints on the printed circuit board.

Part Context

This connector is part of the EconoStik series by Amphenol ICC (FCI), formerly Framatome Connectors International. The series focuses on providing economical yet robust solutions for signal and power distribution. FCI was acquired by Amphenol in 2016, integrating its extensive connector portfolio into the broader Amphenol ICC division for global distribution and support.
