Product Detailed Parameters
- Description：CONN HEADER SMD 9POS 2.54MM
- Series：EconoStik™ 10129380
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR)
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：9
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

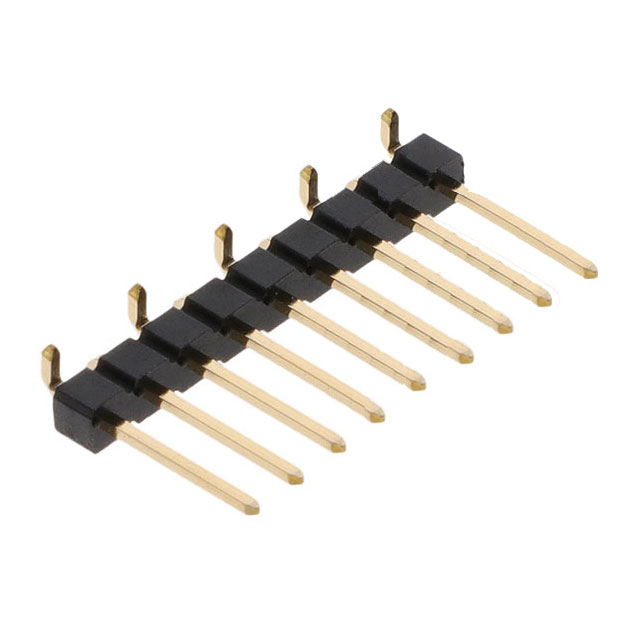

The Amphenol ICC (FCI) part number 10129380-909001ALF is a rectangular connector component belonging to the 10129380 series. It is specified as a surface mount header with nine positions and a contact pitch of 2.54mm. The device utilizes a solder termination method suitable for automated assembly processes. This component is designed for board-to-board interconnection applications requiring reliable electrical continuity in standard electronic assemblies.
Feature Summary
- Surface mount header configuration
- Nine-position layout
- 2.54mm contact pitch
- Solder termination
Applications
- Board-to-board interconnection
- General electronic assemblies
- Industrial equipment
- Factory automation systems
Procurement Notes
Verify the exact suffix ALF against manufacturer documentation to confirm lead-free compliance status. Ensure the surface mount footprint matches the design file. Confirm the nine-position count aligns with circuit requirements before procurement.
Selection Notes
Select this component when a low-profile, surface-mount header is required for dense board layouts. The 2.54mm pitch offers compatibility with standard PCB spacing. Verify operating temperature ranges and current ratings against specific application loads.
Part Context
This component belongs to the 10129380 series of rectangular connectors from Amphenol ICC (FCI). The series provides various pin counts and mounting options for industrial and commercial electronics. The specific model denotes a nine-position variant optimized for surface mount technology integration.
Replacement Considerations
Cross-reference with other 10129380 series variants for different pin counts or mounting styles. Verify mechanical dimensions and electrical specifications match before substituting with generic equivalents.
