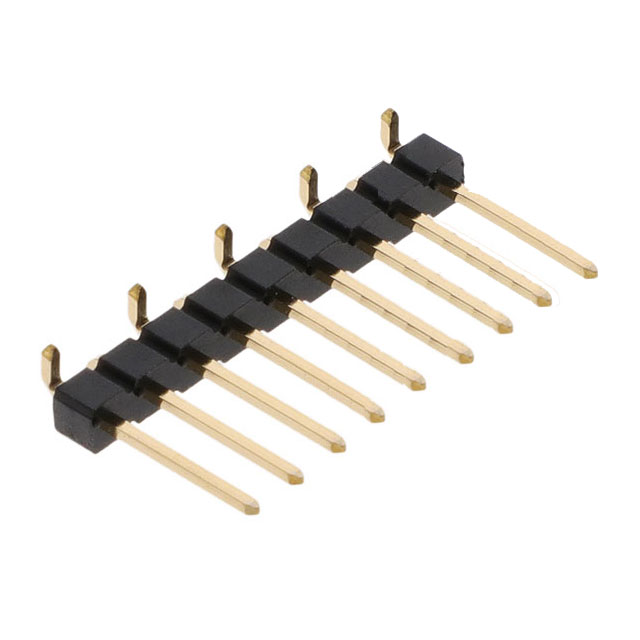

10129380-909001BLF

Description：CONN HEADER SMD 9POS 2.54MM
Series：EconoStik™ 10129380
Mfr：Amphenol ICC (FCI)
Package：Bulk

SKU:f6b6724ebcc5 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER SMD 9POS 2.54MM
Series：EconoStik™ 10129380
Mfr：Amphenol ICC (FCI)
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：9
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：110VDC

Download product information

10129380-909001BLF

Overview

The Amphenol ICC (FCI) part number 10129380-909001BLF is a surface mount header connector belonging to the EconoStik™ series. It features a 9-position configuration with a 0.100-inch (2.54mm) pitch. The component utilizes copper alloy contacts and thermoplastic insulation, rated for an operating temperature range of -55°C to 105°C.

Feature Summary

EconoStik™ series design
Surface mount termination
Copper alloy contact material

Applications

General electronic interconnects

Procurement Notes

Verify the specific suffix 'BLF' against official Amphenol documentation to confirm plating specifications and RoHS compliance status. Ensure the selected variant matches the required surface mount orientation and pin count for the target PCB layout.

Selection Notes

Select this component for applications requiring a low-profile, surface-mounted signal connection. The 2.54mm pitch is standard for general electronics. Confirm that the thermoplastic insulation and copper alloy contacts meet the environmental and current requirements of the specific circuit design.

Part Context

This connector is part of the Amphenol ICC (FCI) EconoStik™ family, which provides cost-effective board-to-board or cable-to-board solutions. The manufacturer, now part of Amphenol ICC, focuses on reliable interconnects for information and communication markets.

Replacement Considerations

Consult official Amphenol cross-reference guides for verified substitutes. Generic equivalents may differ in contact finish thickness or flammability ratings.
