Product Detailed Parameters
- Description：CONN HEADER SMD 9POS 2.54MM
- Series：EconoStik™ 10129380
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR)
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：9
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

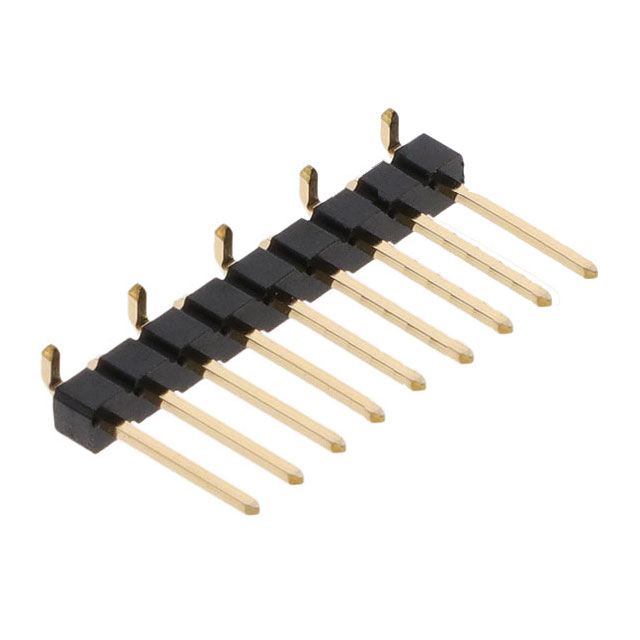

The 10129380-909002ALF is a rectangular connector header manufactured by Amphenol ICC (FCI). It features a surface mount mounting type and utilizes square contact shapes for reliable PCB attachment. The component is designed with 9 positions arranged in a single row, providing a compact solution for interconnecting circuits. The pitch between contacts is standardized at 2.54mm (0.100 inches), ensuring compatibility with general-purpose electronic assemblies. This configuration supports efficient signal routing in space-constrained designs.
Feature Summary
- Surface mount construction for automated PCB assembly
- Single row layout with 9-position capacity
- Standard 2.54mm contact pitch for broad compatibility
- Square contact shape for secure mating
Applications
- General purpose electronic equipment
- Industrial control systems
- Medical devices
Procurement Notes
Verify the specific suffix 'ALF' against official Amphenol documentation to confirm lead-free compliance status. Ensure the ordering part number matches the exact pin count and pitch requirements of your design. Cross-reference the datasheet for precise mechanical dimensions and soldering profile recommendations to guarantee proper surface mount processing.
Selection Notes
Select this component when a low-profile, surface-mount header is required for 9-channel connections. The 2.54mm pitch offers standard spacing for general applications. Consider the single-row configuration for linear circuit layouts. Verify that the surface mount footprint aligns with your PCB design rules and manufacturing capabilities before finalizing the selection.
Part Context
Amphenol ICC (FCI) specializes in high-reliability interconnect solutions for information technology and industrial markets. This connector belongs to their rectangular header series, which emphasizes robust performance in demanding environments. The product line supports various mounting styles and contact configurations to meet diverse electronic integration needs across global supply chains.
Replacement Considerations
Compatible substitutes include the 10129380-906002ALF variant from the same manufacturer family. Both components share similar structural characteristics within the FCI rectangular connector series. Verify electrical ratings and mechanical fit before implementing any alternative part numbers in existing designs.
