Product Detailed Parameters

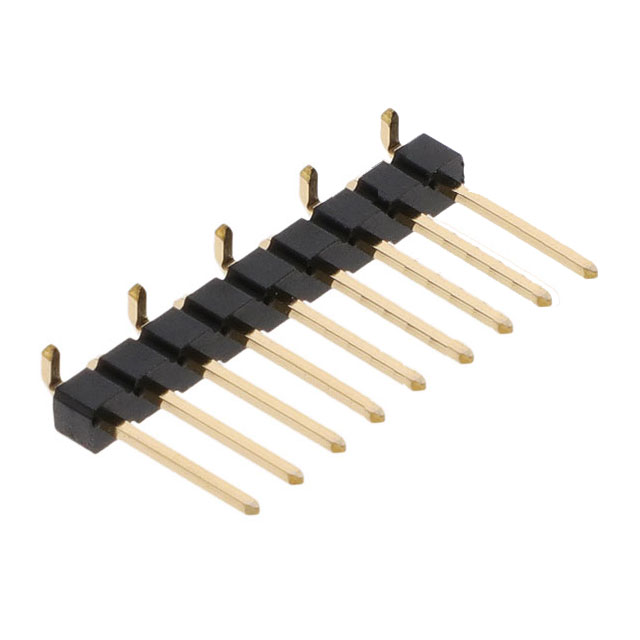

- Description：CONN HEADER SMD 9POS 2.54MM
- Series：EconoStik™ 10129380
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：9
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129380-909002BLF is a surface mount header connector from the EconoStik™ series. It features a 9-position configuration with a 0.100-inch (2.54mm) pitch. The component utilizes vertical through-hole termination and is designed for board-to-board interconnection applications.
Feature Summary
- Surface mount construction for automated assembly
- EconoStik™ series design for cost-effective connectivity
- Vertical orientation for compact PCB integration
Applications
- General electronic equipment interconnects
- Consumer electronics assemblies
- Industrial control boards
Procurement Notes
Verify the exact suffix BLF against the manufacturer's current datasheet to confirm plating specifications and material composition. Ensure compatibility with standard surface mount reflow profiles. Confirm that the 9-pin count matches the target circuit design requirements before finalizing procurement orders.
Selection Notes
Select this component when a low-profile, surface mount header is required for signal or power distribution. The 2.54mm pitch ensures compatibility with standard ribbon cables and mating connectors. Consider the EconoStik™ series benefits for volume production where cost efficiency and reliable soldering are prioritized over high-speed signal integrity requirements.
Part Context
This connector belongs to the EconoStik™ family produced by Amphenol ICC (FCI). The series focuses on providing reliable, economical interconnect solutions for mass-market electronics. FCI, now part of Amphenol, specializes in diverse connector systems ranging from high-speed data to general-purpose power connections.
Replacement Considerations
Direct substitutes must match the 9-position count, 2.54mm pitch, and surface mount vertical form factor. Verify identical termination style and housing color if aesthetic matching is required. Cross-reference specific pin spacing tolerances to ensure mechanical fit within the existing PCB footprint.
