Product Detailed Parameters
- Description：CONN HEADER SMD 10POS 2.54MM
- Series：EconoStik™ 10129380
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR),Cut Tape (CT)
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：10
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

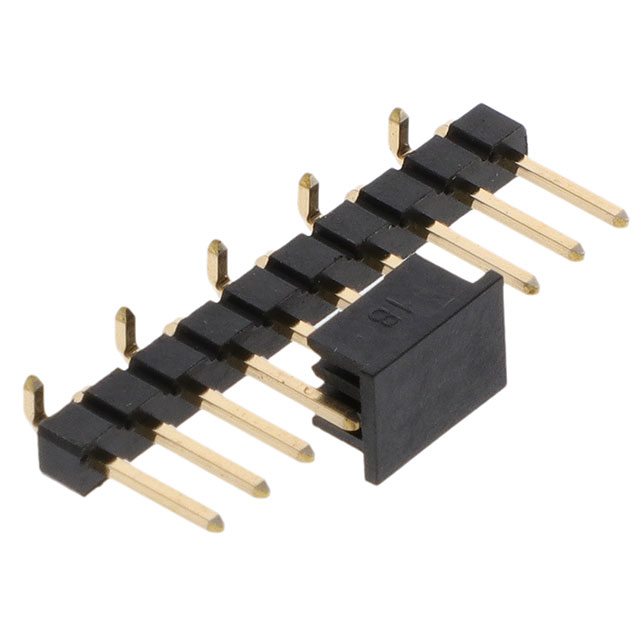

The 10129380-910001ALF is a board-to-board pin header manufactured by Amphenol ICC (FCI). It features a 2.54 mm pitch with one row and ten contacts. The connector utilizes surface mount straight termination for PCB integration. Electrical ratings include a current capacity of 3A and a voltage rating of 110VDC. The operating temperature range spans from -55°C to 105°C. Insulation material meets UL94 V-0 flammability standards, and the housing color is black.
Feature Summary
- Surface mount straight termination design
- Single row configuration with ten positions
- Black insulation housing
Applications
- Board-to-board interconnections
- Electronic circuit assembly
- Signal routing in compact devices
Procurement Notes
Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm that the part number matches exactly 10129380-910001ALF. Check datasheets for updated mechanical drawings and environmental compliance status. Ensure storage conditions maintain integrity before soldering.
Selection Notes
Select this component when a low-profile single-row header is required for surface mounting. The 2.54 mm pitch suits standard spacing requirements. Verify that the 3A current rating and 110VDC voltage limit align with circuit specifications. Consider the -55°C to 105°C operating range for thermal environment compatibility.
Part Context
This connector belongs to the Econostik series produced by Amphenol Communications Solutions. The series focuses on reliable signal and power connections for commercial electronics. Amphenol acquired FCI in 2016, integrating these products into the broader portfolio.
Replacement Considerations
Cross-reference compatible headers with identical 2.54 mm pitch and single-row layout. Verify matching surface mount footprint dimensions and terminal count. Ensure equivalent electrical ratings and thermal performance characteristics.
