Product Detailed Parameters

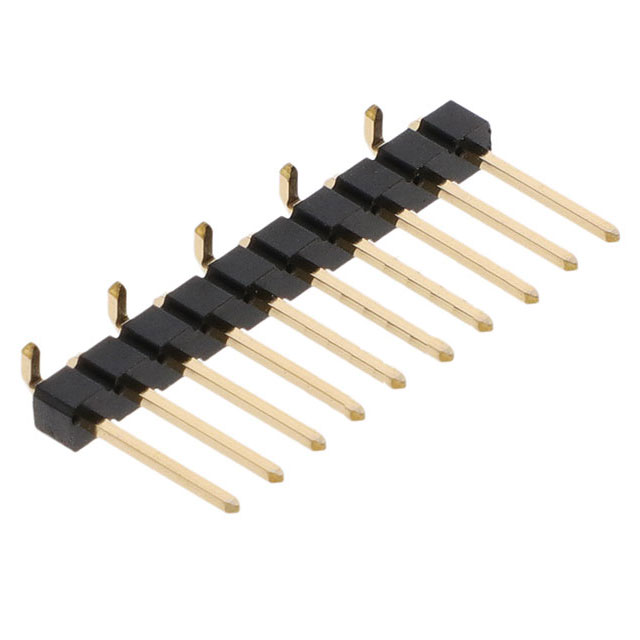

- Description：CONN HEADER SMD 10POS 2.54MM
- Series：EconoStik™ 10129380
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：10
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129380-910001BLF is a through-hole header connector designed for board-to-board or wire applications. It features a 10-position configuration with a 2.54mm pitch. The housing material is thermoplastic, and the connector operates within a voltage rating of 110V. Insulation resistance is specified at 1 GOhms. The component utilizes an unlatched design and is categorized under headers and wire housings.
Feature Summary
- Through-hole termination method for secure PCB mounting
- Thermoplastic housing material providing structural integrity
- Unlatched design suitable for direct insertion applications
Applications
- General industrial interconnect systems
- Factory automation equipment
- Instrumentation modules
Procurement Notes
Verify the specific datasheet revision and physical dimensions against the target PCB footprint before integration. Confirm that the unlatched style aligns with the mechanical retention requirements of the assembly. Ensure the thermoplastic housing material compatibility with the intended operating environment and thermal conditions is validated during the design phase.
Selection Notes
Select this component when a low-profile, unlatched header is required for 10-position connections. The 2.54mm pitch is standard for general-purpose wiring. Consider the 110V rating and insulation resistance for circuit safety. This series is appropriate for applications where latching mechanisms are unnecessary or space-constrained.
Part Context
This connector belongs to the Amphenol ICC (FCI) portfolio of headers and wire housings. It is part of a broader range of interconnect solutions designed for industrial and commercial electronics. The product line emphasizes reliable connectivity through standardized pitches and robust housing materials for various manufacturing needs.
