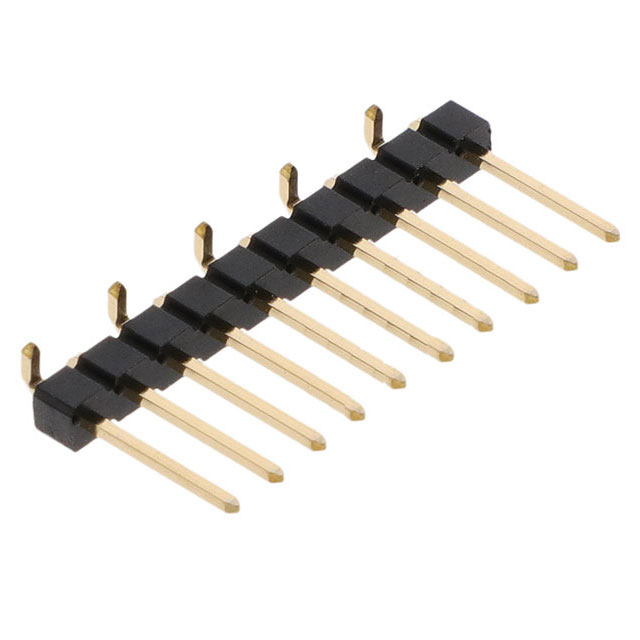

10129380-910002BLF

Description：CONN HEADER SMD 10POS 2.54MM
Series：EconoStik™ 10129380
Mfr：Amphenol ICC (FCI)
Package：Bulk

SKU:78078d48d58c Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER SMD 10POS 2.54MM
Series：EconoStik™ 10129380
Mfr：Amphenol ICC (FCI)
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：10
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.318" (8.08mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：110VDC

Download product information

10129380-910002BLF

Overview

The Amphenol ICC (FCI) part number 10129380-910002BLF is a surface mount header connector belonging to the EconoStik series. It features a single row of ten positions with a 2.54 mm pitch. The connector utilizes thermoplastic insulation and is rated for an operating temperature range of -55°C to 105°C. The housing material meets UL 94 V-0 flammability standards, and the component is available in black coloration.

Feature Summary

Surface mount termination method for automated assembly
Thermoplastic insulation material construction
UL 94 V-0 flammability rating compliance

Applications

General electronic circuit interconnections
Signal routing on printed circuit boards
Low-power data transmission links

Procurement Notes

Verify the specific suffix BLF against official manufacturer documentation to confirm plating composition and environmental compliance status. Ensure the selected variant matches the required surface mount footprint and thermal profile specifications for the intended manufacturing process.

Selection Notes

Select this component when a low-cost, single-row surface mount header is required for standard spacing applications. Confirm that the thermoplastic insulation properties and temperature ratings align with the operational environment and soldering thermal profiles of the target assembly.

Part Context

This connector belongs to the EconoStik series by Amphenol ICC (FCI), designed for cost-effective board-to-board or cable-to-board connections. The series emphasizes reliable performance in general-purpose electronics while maintaining standard dimensional compatibility for widespread industrial adoption.
