10129381-906001BLF

Overview

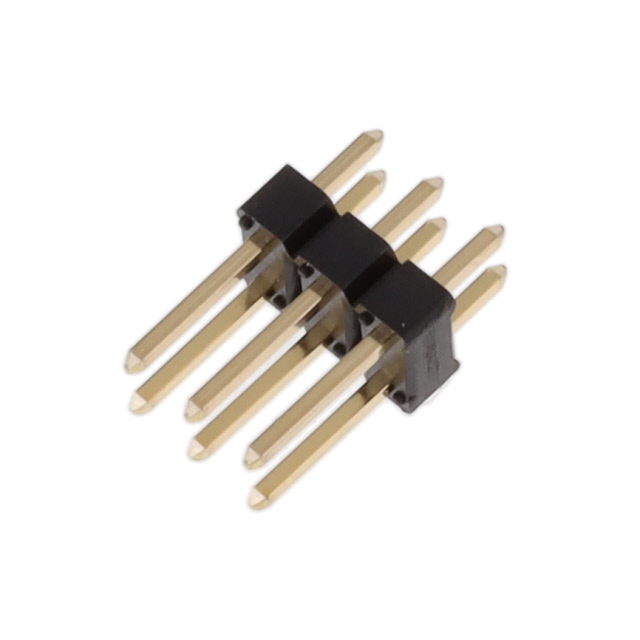

The Amphenol ICC (FCI) part number 10129381-906001BLF is a vertical board-to-board header connector belonging to the EconoStik series. It features a double-row configuration with six positions and a standard 2.54 mm (0.100 inch) pitch. Designed for through-hole mounting, this unshrouded male pin connector utilizes gold plating on its contacts to ensure reliable signal transmission. The component is engineered for industrial control and test applications, supporting up to fifty mating cycles while maintaining structural integrity in standard electronic assemblies.

Feature Summary

• Vertical orientation facilitates direct board-to-board interconnection
• Unshrouded design allows for compact spatial arrangement
• Gold contact plating ensures consistent electrical conductivity
• Through-hole termination provides secure mechanical anchoring

Applications

• Industrial control systems
• Test equipment modules
• General-purpose electronic assemblies

Procurement Notes

Verify that the specific ordering suffix matches the required contact count and pitch specifications. Confirm RoHS compliance status against current manufacturing standards. Ensure the through-hole footprint aligns with the target printed circuit board layout. Validate that the unshrouded header style meets the assembly clearance requirements. Check for any recent product change notices affecting material composition or plating thickness.

Selection Notes

Select this component when a low-profile vertical connection is required between adjacent circuit boards. The 2.54 mm pitch offers compatibility with standard industry spacing. Consider the unshrouded nature of the header for space-constrained designs where side clearance is available. Evaluate the sixty-microinch gold plating for environments requiring corrosion resistance. Ensure the double-row format fits within the available board width constraints.

Part Context

This connector belongs to the EconoStik family, which focuses on cost-effective solutions for general interconnect needs. The series emphasizes reliability through standardized gold plating processes. As an Amphenol ICC product, it integrates into broader connectivity portfolios designed for high-volume manufacturing. The vertical form factor distinguishes it from right-angle alternatives, optimizing height profiles in stacked configurations.

Replacement Considerations

Direct substitutes must maintain the 2.54 mm pitch and six-position count. Verify that alternative headers support the same through-hole mounting method. Ensure comparable gold plating thickness for equivalent wear resistance. Confirm that the unshrouded design does not compromise safety or alignment in the final assembly.

FAQ

What is the maximum number of mating cycles supported by this connector?

The EconoStik series supports up to fifty mating cycles.

Is this connector shrouded or unshrouded?

This specific model is an unshrouded header design.
