Product Detailed Parameters
- Description：CONN HEADER VERT 8POS 2.54MM
- Series：EconoStik™ 10129381
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：0.450" (11.43mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

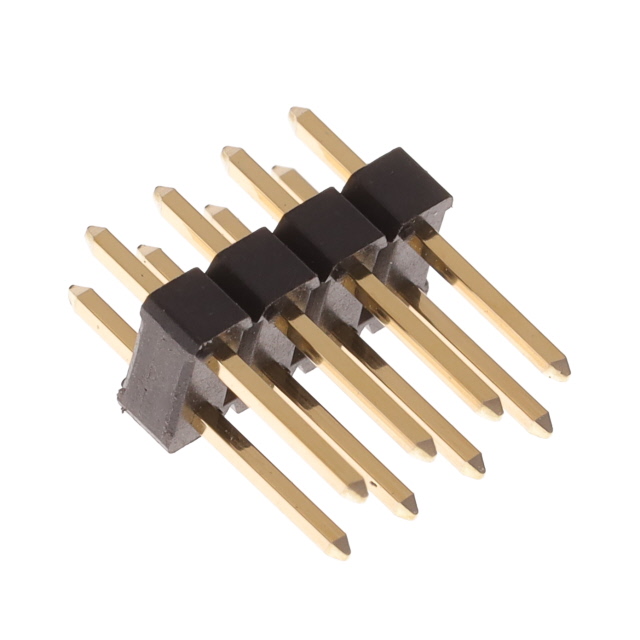

The Amphenol ICC (FCI) part number 10129381-908001BLF is a vertical through-hole header belonging to the EconoStik series. It features a 2x4 pin configuration with a 2.54 mm pitch. The connector utilizes thermoplastic insulation rated UL94 V-0 and operates within a temperature range of -55°C to 105°C. Designed for board-to-board or cable connections, it supports a current rating of 3A.
Feature Summary
- Vertical through-hole termination for secure PCB mounting
- Cuttable design allows for flexible contact count adjustment
- Thermoplastic insulation ensures durability in harsh environments
Applications
- Industrial control systems
- Data communication equipment
- Factory automation instrumentation
Procurement Notes
Verify the specific suffix BLF against official datasheets to confirm plating and material specifications. Ensure compatibility with mating connectors regarding height and pitch. Confirm RoHS compliance status for regulatory adherence. Cross-reference the manufacturer part number with authorized distributor catalogs to avoid counterfeit components.
Selection Notes
Select this component when a low-profile, cost-effective vertical header is required for 2.54 mm spacing applications. The EconoStik series offers reliable signal integrity for general-purpose interconnects. Consider the cuttable feature if custom pin counts are needed. Evaluate thermal requirements against the specified operating temperature range.
Part Context
This component is part of the Amphenol FCI EconoStik line, known for providing durable and economical interconnect solutions. Amphenol acquired FCI in 2016, integrating its robust connector portfolio into the Communications Solutions division. This series targets high-volume industrial and commercial electronics markets requiring reliable board-to-board connectivity.
Replacement Considerations
Direct substitutes include other 2x4 vertical headers from the same EconoStik family, such as 10129381-912003BLF or 10129381-916001BLF, provided the pin count matches the application requirements.
