Product Detailed Parameters
- Description：CONN HEADER VERT 8POS 2.54MM
- Series：EconoStik™ 10129381
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：0.420" (10.67mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

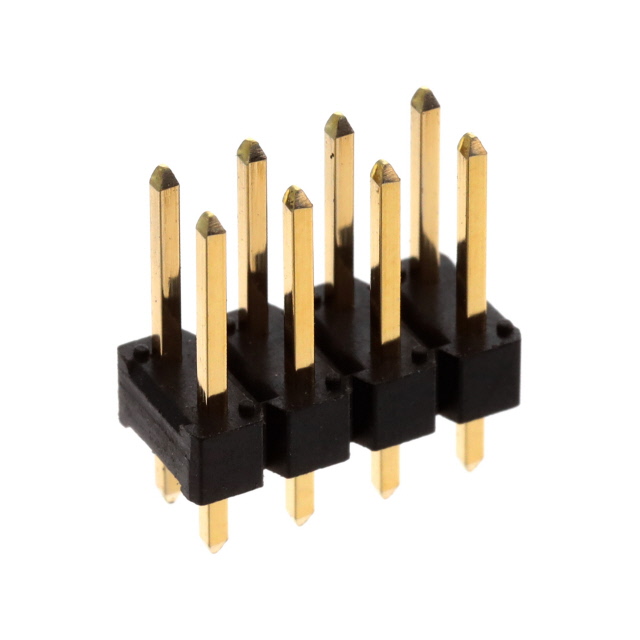

The Amphenol ICC (FCI) part number 10129381-908002BLF is an EconoStik series header connector designed for through-hole mounting. It features a vertical orientation with two rows and eight positions, utilizing a 0.100-inch (2.54mm) pitch. The component is constructed with thermoplastic housing material and supports a current rating of 3A. This specific configuration provides reliable electrical interconnection for printed circuit board applications within the broader FCI connector portfolio.
Feature Summary
- Vertical through-hole design for direct PCB integration
- Dual-row configuration with eight contact positions
- EconoStik series construction using thermoplastic materials
Applications
- General-purpose electronic circuit interconnections
- Industrial control system signal routing
- Consumer electronics internal wiring
Procurement Notes
Verify the exact pin count and row configuration against the schematic to ensure compatibility with the target footprint. Confirm that the 3A current rating meets the operational requirements of the specific circuit branch. Check for RoHS compliance status if environmental regulations apply to the final assembly. Ensure the vertical header style aligns with the mechanical constraints of the enclosure design.
Selection Notes
Select this component when a low-profile, cost-effective vertical header is required for 2.54mm pitch applications. The EconoStik series offers a balance of performance and economy for standard interconnect needs. Consider the 3A current capacity and thermoplastic durability for general use cases. Evaluate the two-row layout against available board space and mating connector height restrictions.
Part Context
This connector belongs to the Amphenol ICC (FCI) EconoStik family, known for providing economical solutions for board-to-board and wire-to-board connections. FCI, now part of Amphenol ICC, specializes in high-reliability interconnects for data communication and industrial markets. The EconoStik line focuses on standard spacing and robust mechanical properties for widespread electronic manufacturing.
Replacement Considerations
Compatible substitutes include other 2x4 vertical headers with 2.54mm pitch from various manufacturers. Ensure mating connectors match the pin count and row arrangement. Verify that alternative components meet the same current and voltage ratings. Check for identical mounting hole dimensions and overall height specifications.
