Product Detailed Parameters

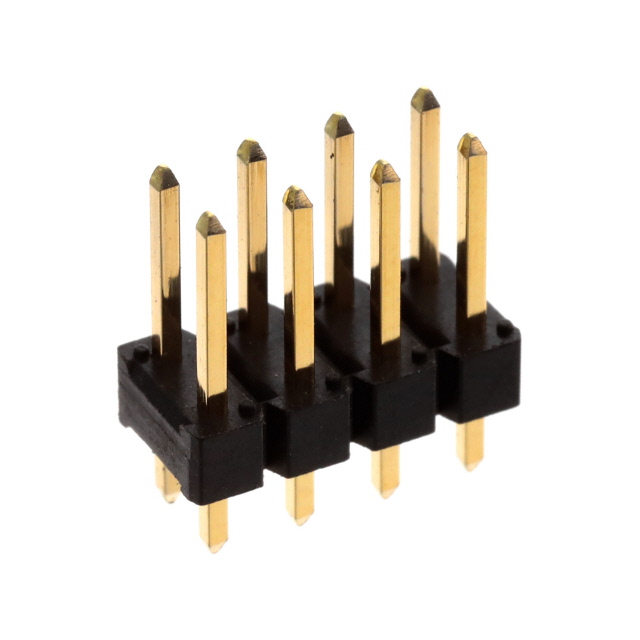

- Description：CONN HEADER VERT 8POS 2.54MM
- Series：EconoStik™ 10129381
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：0.508" (12.90mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) 10129381-908004BLF is a vertical board-to-board connector header from the EconoStik series. It features an 8-position configuration with dual rows and a 2.54 mm (0.100 inch) pin spacing. The component utilizes through-hole termination for secure PCB mounting. Rated for 3 A current and 1500 V insulation voltage, it operates within a temperature range of -55°C to 105°C. Constructed with copper alloy contacts and black thermoplastic housing, it meets UL 94 V-0 flammability standards.
Feature Summary
- Vertical orientation design facilitates standard printed circuit board assembly processes.
- Dual-row layout provides efficient signal routing in compact space-constrained applications.
- Through-hole termination ensures robust mechanical stability and reliable electrical connection.
Applications
- Industrial control systems requiring durable interconnects
- Consumer electronics utilizing standard pitch headers
- General-purpose data processing equipment
Procurement Notes
Verify the specific ordering suffix against official Amphenol documentation to confirm contact plating, housing color, and packaging details. Ensure compatibility with mating receptacles regarding row count and pin spacing. Confirm RoHS compliance status and moisture sensitivity level requirements for your manufacturing process before procurement.
Selection Notes
Select this component when a low-profile, cost-effective vertical header is required for 2.54 mm pitch applications. Consider the 3 A current rating and 1500 V insulation capability for suitability in general electronic circuits. Evaluate the through-hole mounting style against surface-mount alternatives based on mechanical stress requirements.
Part Context
This part belongs to the EconoStik series by Amphenol ICC (FCI), formerly FCI. The series focuses on providing economical yet reliable connectivity solutions for various electronic assemblies. As part of the broader Amphenol portfolio, these connectors emphasize durability and ease of installation for mass-market applications.
Replacement Considerations
Direct substitutes must match the 8-pin, dual-row, 2.54 mm pitch, and vertical through-hole specifications. Verify that alternative components maintain identical current ratings and flammability classifications to ensure system safety and performance parity.
