Product Detailed Parameters
- Description：CONN HEADER VERT 10POS 2.54MM
- Series：EconoStik™ 10129381
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：10
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：0.508" (12.90mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

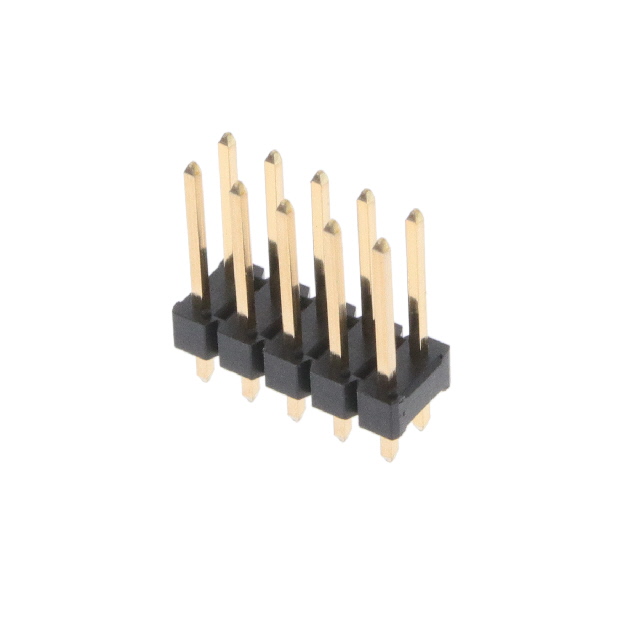

The Amphenol ICC (FCI) part number 10129381-910004BLF is a pin strip header from the EconoStik series. It features a 2-row configuration with 10 positions and a 2.54 mm pitch. The connector utilizes brass contacts with gold plating for reliable signal transmission. Designed for through-hole mounting, it offers a right-angle orientation suitable for board-to-board applications. The housing is constructed from black thermoplastic material rated UL 94 V-0 for flammability. It operates within a temperature range of -55°C to +105°C and supports a current rating of 3 A.
Feature Summary
- Right-angle through-hole mounting design for efficient board-to-board connections
- Gold-plated brass contacts ensure durable electrical performance
- Thermoplastic housing provides UL 94 V-0 flammability rating
Applications
- Board-to-board interconnections
- General electronic equipment assembly
- Industrial control systems
Procurement Notes
Verify the specific revision level and packaging quantity when sourcing this component. Confirm that the supplier provides original manufacturer documentation to ensure authenticity. Check for any obsolescence notices or lifecycle status updates directly from Amphenol FCI before finalizing procurement plans.
Selection Notes
Select this component for applications requiring a low-profile, cost-effective connection solution. Ensure the PCB layout accommodates the right-angle footprint and the 2.54 mm grid spacing. Verify that the operating environment remains within the specified thermal limits and does not exceed the 3 A current capacity per contact.
Part Context
This header belongs to the EconoStik family, which focuses on providing economical yet reliable connectivity options. The series is widely used in standard electronics manufacturing where space constraints are moderate and high-speed data transmission is not the primary requirement compared to general signal routing.
Replacement Considerations
Cross-reference with other 10-position, 2.54 mm pitch headers from the same manufacturer if supply chain issues arise. Ensure mechanical dimensions and contact plating specifications match exactly to maintain compatibility.
