10129381-910005BLF

Overview

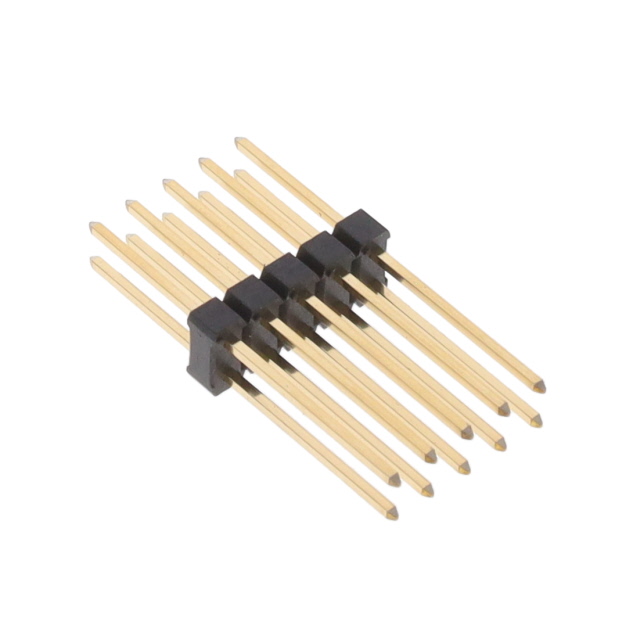

The Amphenol ICC (FCI) 10129381-910005BLF is a double-row header connector designed for through-hole mounting. It features a 2x5 pin configuration with a 0.100 inch (2.54 mm) pitch. The connector utilizes male pins with gold plating and employs a push-pull locking mechanism. It is constructed from thermoplastic insulation and supports board-to-board or cable applications.

Feature Summary

• Double-row vertical header design
• Push-pull locking system
• Gold-plated male contact surfaces

Applications

• Board-to-board interconnections
• Cable-to-board connections
• General electronic assembly

Procurement Notes

Verify the specific pin count and row configuration against the datasheet to ensure compatibility with mating connectors. Confirm that the push-pull locking style matches the mechanical requirements of the target assembly. Check material specifications and termination methods for process alignment.

Selection Notes

Select this component when a low-profile, double-row header with secure locking is required. Ensure the 2.54 mm pitch aligns with existing PCB layout constraints. Verify that the through-hole termination method is compatible with the manufacturing soldering process.

Part Context

This part belongs to the EconoStik series by Amphenol ICC (FCI). The series provides reliable interconnection solutions for various electronic markets. The manufacturer acquired FCI, integrating its connector technologies into the Amphenol ICC portfolio.

Replacement Considerations

Check for direct substitutes within the same EconoStik family with identical pin counts and locking mechanisms. Verify that any alternative maintains the same 2.54 mm pitch and through-hole termination style.
