Product Detailed Parameters
- Description：CONN HEADER VERT 12POS 2.54MM
- Series：EconoStik™ 10129381
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：0.450" (11.43mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

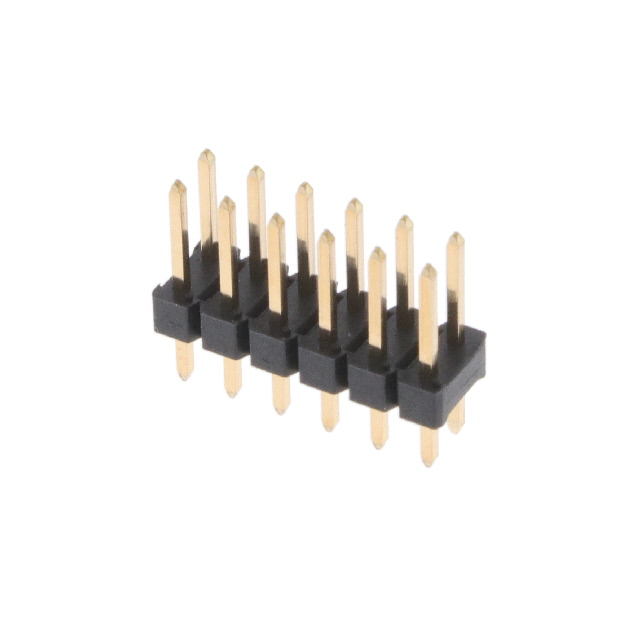

The Amphenol ICC (FCI) 10129381-912001BLF is a vertical board-to-board header from the EconoStik series. It features 12 positions with a 2.54mm pitch across two rows. The connector utilizes through-hole solder termination and includes a black UL94 V-0 rated thermoplastic housing. Contact plating options include gold or GXT, with a thickness of 30.0µin (0.76µm). Rated for 3A current and 110VDC voltage, it operates within a temperature range of -55°C to 105°C.
Feature Summary
- Vertical board-to-board interconnection design
- Cuttable construction for flexible configuration
- Gold or GXT contact surface treatment
Applications
- General electronic equipment interconnects
- Industrial control systems
- Communication infrastructure hardware
Procurement Notes
Verify the specific suffix designation against official manufacturer documentation to confirm exact plating specifications and material composition. Confirm that the component meets all required environmental standards for the intended deployment environment before finalizing procurement orders.
Selection Notes
Select this component when a low-profile, cost-effective vertical header is required for signal transmission. Ensure the PCB layout accommodates the 2.54mm spacing and that the 3A current rating aligns with the circuit requirements. Verify mechanical clearance for the vertical orientation during assembly planning.
Part Context
This part belongs to the EconoStik family, designed for high-volume commercial electronics applications. The series emphasizes reliable performance in standard operating conditions while maintaining competitive manufacturing costs. It serves as a fundamental interconnect solution for mass-produced consumer and industrial devices.
Replacement Considerations
Cross-reference with other EconoStik headers sharing identical pin counts and pitch dimensions. Verify that alternative suppliers offer compatible contact plating and thermal resistance characteristics to ensure seamless integration without redesigning the host printed circuit board.
FAQ
What is the maximum operating temperature for this connector?
The component supports an operating temperature range from -55°C to 105°C.
Is the housing material flame retardant?
Yes, the insulation color is black and the material flammability rating is UL94 V-0.
