Product Detailed Parameters

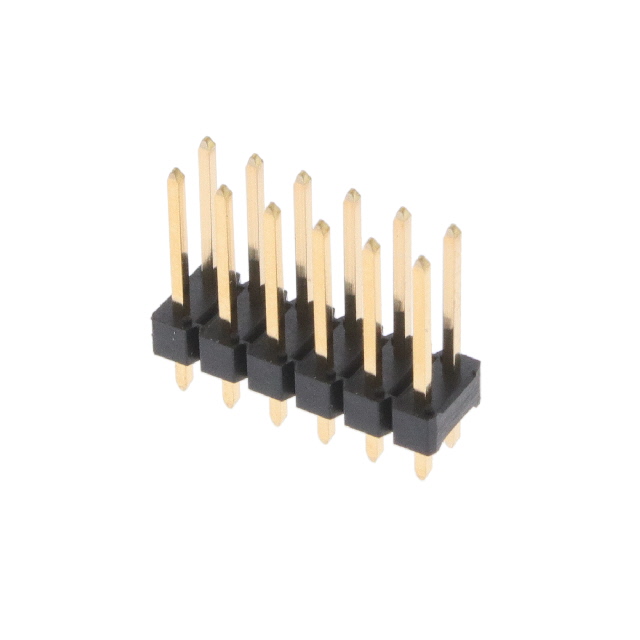

- Description：CONN HEADER VERT 12POS 2.54MM
- Series：EconoStik™ 10129381
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：0.508" (12.90mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129381-912004BLF is a vertical pin header from the EconoStik series, designed for board-to-board interconnections. It features a 2.54 mm pitch and accommodates 12 positions arranged in two rows. The connector utilizes through-hole termination with solder pins and gold-plated brass contacts to ensure reliable signal transmission. Rated for 3 A current and 1500 V voltage, it operates within a temperature range of -55°C to +105°C. The housing is constructed from black thermoplastic material compliant with UL 94 V-0 flammability standards.
Feature Summary
- Vertical orientation facilitates compact board-to-board stacking configurations
- Gold-plated brass contacts provide durable electrical conductivity
- Thermoplastic housing meets UL 94 V-0 flammability requirements
Applications
- Board-to-board interconnects
- General electronic assemblies
- Industrial control systems
Procurement Notes
Verify the specific manufacturer product number against official Amphenol documentation to confirm compatibility. Ensure that the required contact plating thickness and current ratings align with the target application's electrical specifications before finalizing procurement decisions.
Selection Notes
Select this component when a low-profile vertical header with a standard 2.54 mm pitch is required. The EconoStik series offers a cost-effective solution for general-purpose connections. Confirm that the 12-position count and dual-row layout fit the available PCB footprint and mating receptacle constraints.
Part Context
This connector belongs to the Amphenol FCI EconoStik family, which focuses on economical and reliable interconnect solutions. The series provides various pin counts and orientations to support diverse electronic design needs. The 10129381-912004BLF variant specifically addresses applications requiring a 12-pin vertical configuration with robust thermal and electrical performance.
Replacement Considerations
Direct substitutes include other 12-position, 2.54 mm pitch vertical headers from the same EconoStik line, such as 10129381-912003BLF. Verify mechanical dimensions and contact material specifications to ensure interchangeability without modifying the host PCB layout.
