10129381-914001BLF

Overview

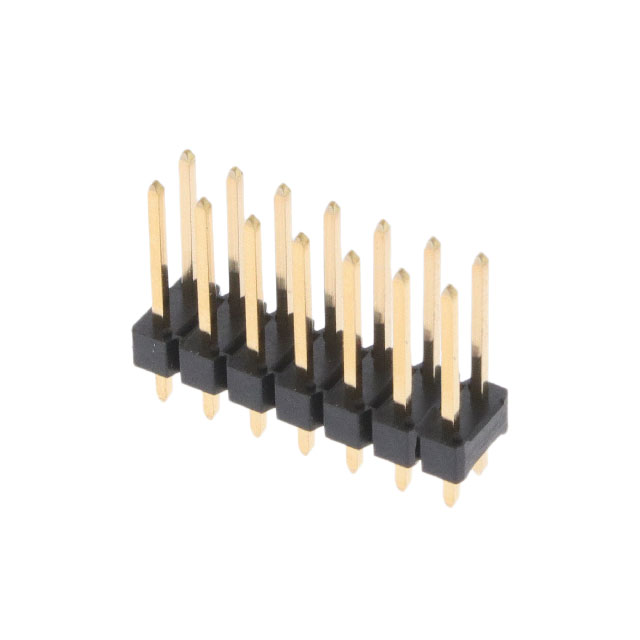

The Amphenol ICC (FCI) 10129381-914001BLF is a vertical header from the EconoStik series, designed for board-to-board interconnections. It features a 2-row configuration with 14 positions and a 2.54 mm pitch. The connector utilizes male pin contacts made of copper alloy, finished with gold plating at a thickness of 1.00 µin (0.025 µm). It employs a through-hole solder termination style and is housed in black thermoplastic insulation. The component supports an operating temperature range from -55°C to +105°C.

Feature Summary

• Vertical right-angle design facilitates compact board-to-board stacking.
• Gold-plated copper alloy contacts ensure reliable signal transmission.
• Thermoplastic housing provides UL 94 V-0 flammability rating.

Applications

• Industrial control systems
• Test and measurement equipment
• General-purpose board-to-board connections

Procurement Notes

Verify current availability status directly with the manufacturer or authorized distributors, as stock levels fluctuate. Confirm that the specific ordering suffix matches the required contact finish and housing material specifications. Ensure compatibility with standard 2.54 mm mating connectors. Request updated lead times and minimum order quantities prior to finalizing procurement plans.

Selection Notes

Select this component when a vertical, non-shrouded header is required for low-current signal applications. The 2.54 mm pitch aligns with standard PCB grid layouts. Verify that the 14-position count fits the design constraints. Consider the through-hole mounting requirement for mechanical stability during assembly.

Part Context

This part belongs to the Amphenol EconoStik family, which focuses on cost-effective, high-volume interconnect solutions. The series is characterized by its robust construction and suitability for general industrial environments. The 10129381 series specifically offers cuttable options for flexible row length configurations.

Replacement Considerations

Direct substitutes within the same EconoStik series include parts with identical pitch and position counts but different row configurations or housing colors. Verify mechanical dimensions and electrical ratings before substituting with generic equivalents.
