10129381-916001BLF

Overview

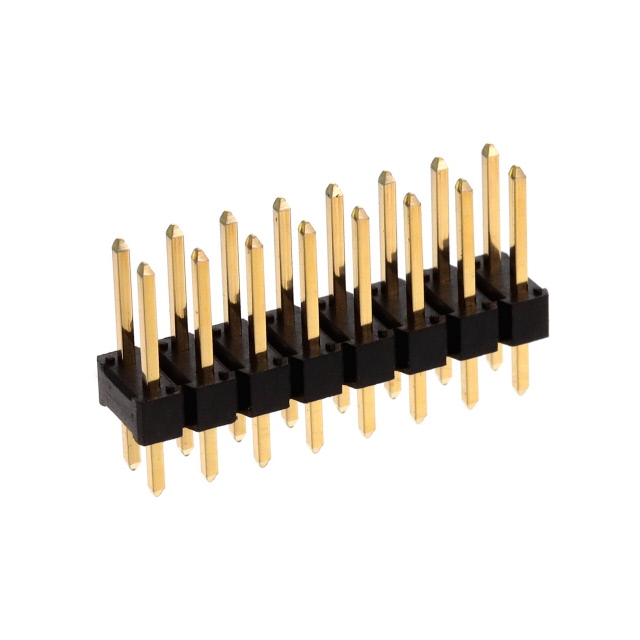

The Amphenol ICC (FCI) part number 10129381-916001BLF is a vertical board-to-board header belonging to the EconoStik series. It features a double-row configuration with 16 positions and a 2.54 mm pitch. The connector supports a current rating of 3A and an insulation resistance of 1 GOhms. Designed for through-hole mounting, it provides reliable electrical interconnection in compact electronic assemblies.

Feature Summary

• Vertical orientation facilitates space-efficient PCB layout
• Double-row design increases contact density
• Through-hole termination ensures mechanical stability

Applications

• General-purpose electronic equipment interconnects
• Industrial control system signal routing
• Consumer electronics internal circuit connections

Procurement Notes

Verify the manufacturer part number 10129381-916001BLF against official Amphenol documentation to confirm specifications. Ensure compatibility with mating connectors regarding pitch and row configuration. Check for RoHS compliance status if required by project regulations before finalizing procurement.

Selection Notes

Select this component when a low-profile, cost-effective vertical header is needed for board-to-board applications. The 2.54 mm pitch is standard for general connectivity. Consider the unlatched design for applications where external retention mechanisms are not required or provided by the housing.

Part Context

This component is part of the EconoStik product line from Amphenol ICC (formerly FCI). The series focuses on providing durable and economical connection solutions for various electronic markets. Amphenol acquired FCI in 2016, integrating these products into its broader communications solutions portfolio.

Replacement Considerations

Direct substitutes must match the 16-position, double-row, 2.54 mm pitch vertical header specification. Verify that alternative parts maintain the same current rating and insulation resistance values to ensure equivalent performance in the target application.
