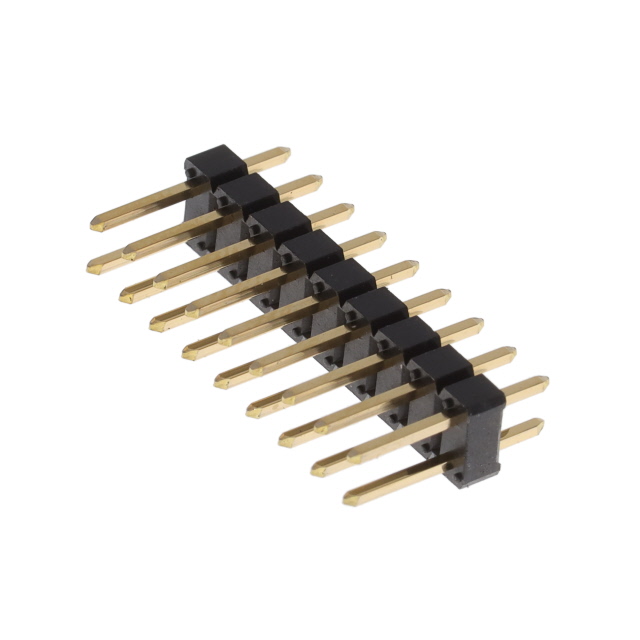

10129381-918001BLF

$0.32

Description：CONN HEADER VERT
Series：EconoStik™ 10129381
Mfr：Amphenol ICC (FCI)
Package：Bag

SKU:a683fb4593f7 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT
Series：EconoStik™ 10129381
Mfr：Amphenol ICC (FCI)
Package：Bag
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：18
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：0.120" (3.05mm)
Overall Contact Length：0.450" (11.43mm)
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：110VDC

Download product information

10129381-918001BLF

Overview

The Amphenol ICC (FCI) part number 10129381-918001BLF is a rectangular connector header designed for through-hole mounting. It features male pins with a pitch of 0.100 inches (2.54mm). The component has a current rating of 3A and a voltage rating of 110VDC. The insulation color is black, and it belongs to the EconoStik series.

Feature Summary

Through-hole vertical header configuration
Male pin contact type
EconoStik series construction

Applications

General Purpose electronics
Industrial equipment
Medical devices
Telecommunications systems

Procurement Notes

Verify the specific suffix BLF against the manufacturer datasheet to confirm insulation material and plating specifications. Ensure the ordering quantity matches the manufacturer's standard packaging requirements. Confirm that the 3A current rating and 110VDC voltage rating are sufficient for the target circuit design before finalizing procurement.

Selection Notes

Select this component when a low-profile, cost-effective vertical header is required for board-to-board or cable connections. The EconoStik series offers reliable performance for general-purpose applications. Verify that the 2.54mm pitch aligns with the mating connector and PCB layout constraints.

Part Context

This connector is part of the Amphenol ICC (FCI) rectangular connector portfolio, which provides solutions for signal and power distribution. The company, formerly FCI, specializes in interconnect technologies for information, communication, and commercial electronic markets, emphasizing signal integrity and durability.

Replacement Considerations

Compatible alternatives within the same series include 10129381-916001BLF and 10129381-920001BLF. These parts share similar form factors and electrical characteristics but may differ in pin count or specific mechanical dimensions. Always cross-reference the full datasheet before substitution.
