Product Detailed Parameters
- Description：CONN HEADER VERT 20POS 2.54MM
- Series：EconoStik™ 10129381
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：20
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：0.420" (10.67mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

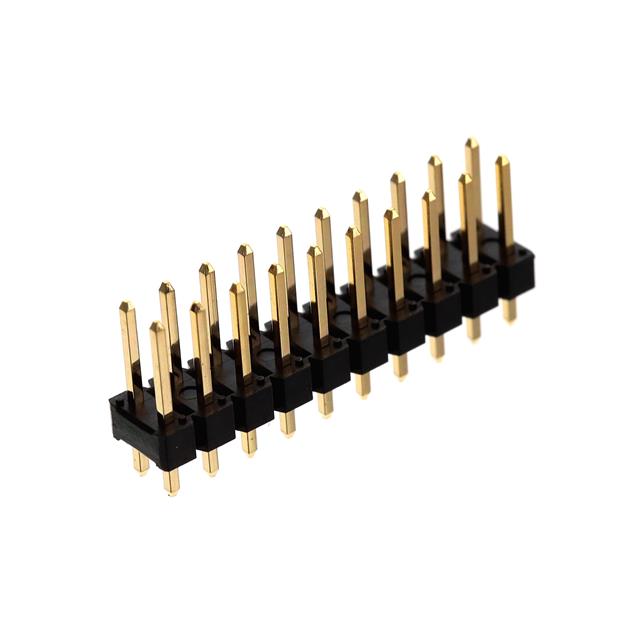

The Amphenol ICC (FCI) part number 10129381-920002BLF is a vertical, through-hole header connector from the EconoStik series. It features a 2x10 pin configuration with a 0.100 inch (2.54 mm) pitch. The contacts are gold-plated copper alloy with a mating thickness of 1.00 µin (0.025 µm). Rated for 3A current and 110VDC voltage, it utilizes a push-pull locking mechanism and thermoplastic insulation rated UL 94 V-0. Operating temperature ranges from -55°C to 105°C.
Feature Summary
- Vertical board-to-board or cable connection style
- Push-pull locking mechanism for secure attachment
- Gold-plated contact finish for reliable conductivity
- Thermoplastic insulation with UL 94 V-0 flammability rating
Applications
- Low to moderate power electronic assemblies
- Industrial control systems
- Communication equipment interconnects
Procurement Notes
Verify the specific suffix BLF against the manufacturer's latest datasheet to confirm plating specifications and material composition. Ensure compatibility with mating receptacles regarding the push-pull locking interface and physical dimensions. Confirm RoHS compliance status as documentation may vary by production batch. Cross-reference the 2x10 pin count and 2.54mm pitch with design requirements before finalizing procurement orders.
Selection Notes
Select this component when a vertical, locked header is required for 2.54mm pitch applications. The 3A current rating suits low-power signal and power distribution tasks. Consider the push-pull feature if vibration resistance is critical. Verify that the 110VDC voltage limit meets circuit requirements. Compare against standard headers if locking mechanisms are not necessary for the specific assembly environment.
Part Context
This connector belongs to the EconoStik series by Amphenol ICC (FCI), formerly FCI. The series focuses on cost-effective solutions for general-purpose interconnects. Amphenol acquired FCI in 2016, integrating these products into their broader portfolio. This specific model represents a standard vertical header variant within that lineup.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify mechanical fit and electrical ratings with any alternative components.
