Product Detailed Parameters
- Description：CONN HEADER VERT 20POS 2.54MM
- Series：EconoStik™ 10129381
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：20
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：0.538" (13.67mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

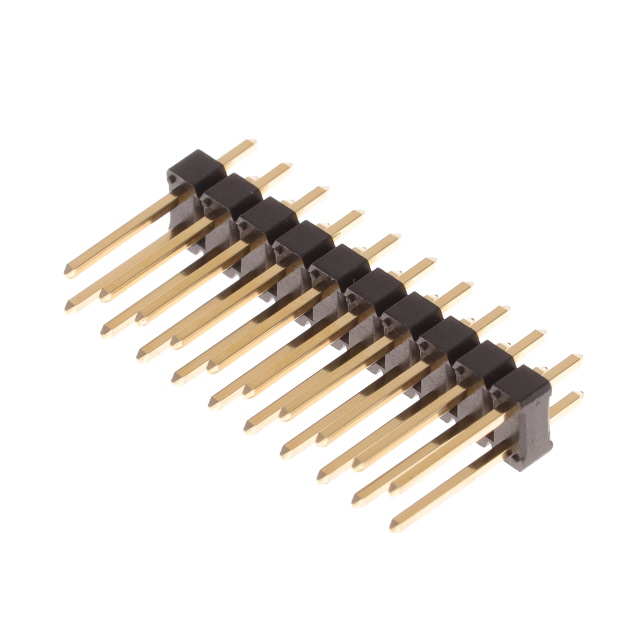

The Amphenol ICC (FCI) part number 10129381-920003BLF is a board-to-board connector belonging to the EconoStik series. It features an unshrouded vertical header configuration designed for through-hole mounting on printed circuit boards. The component consists of two rows with a total of twenty positions, utilizing a 2.54 mm (0.100 inch) contact pitch. This specific model supports up to fifty mating cycles and is suitable for various industrial control and test applications requiring reliable signal transmission.
Feature Summary
- Vertical orientation for direct board-to-board connection
- Through-hole mounting technology for secure PCB attachment
- Double-row layout providing twenty contact positions
- EconoStik series design optimized for cost-effective connectivity
Applications
- Industrial control systems
- Test equipment interfaces
- General-purpose board-to-board interconnects
Procurement Notes
Verify the exact pin count and row configuration against the schematic before ordering. Confirm that the through-hole footprint matches the target PCB design. Ensure compatibility with mating receptacles from the same or compatible series. Check for any recent product change notices regarding material or dimensional updates.
Selection Notes
Select this component when a low-cost, vertical board-to-board solution is required. The 2.54 mm pitch is standard for many legacy and general-purpose designs. Consider the fifty-cycle rating for applications with limited mating frequency. Evaluate space constraints as the unshrouded design offers minimal lateral protection.
Part Context
This connector is part of the Amphenol FCI EconoStik family, which focuses on economical interconnect solutions. Amphenol acquired FCI in 2016, integrating its broad portfolio into the Amphenol ICC division. The EconoStik line specifically targets high-volume applications where cost efficiency is prioritized without compromising basic reliability standards.
Replacement Considerations
Compatible substitutes include other 20-position, 2.54 mm pitch double-row headers from the same manufacturer. Verify mechanical dimensions and electrical ratings before swapping. Ensure the replacement maintains the vertical through-hole mounting style.
