Product Detailed Parameters

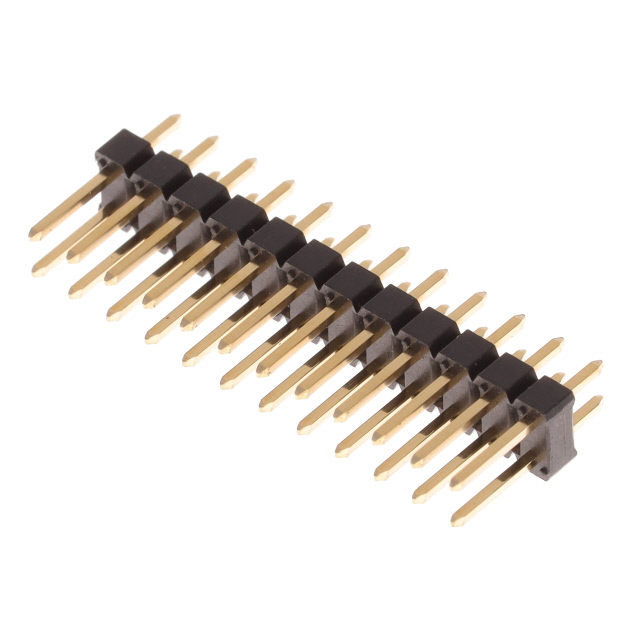

- Description：CONN HEADER VERT 24POS 2.54MM
- Series：EconoStik™ 10129381
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：24
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：0.450" (11.43mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129381-924001BLF is a header connector belonging to the EconoStik series. It features a 2.54 mm pitch and consists of 24 positions arranged in a double-row configuration. The component is designed for vertical board-to-board mounting with through-hole termination. It has a current rating of 3A and a voltage rating of 110VDC. The insulation color is black, and the housing material is thermoplastic.
Feature Summary
- Double-row unshrouded header design
- Vertical orientation for PCB integration
- Through-hole soldering termination
Applications
- General purpose electronic assemblies
- Industrial control systems
- Medical equipment interfaces
- Telecommunications hardware
Procurement Notes
Verify the specific suffix BLF against official datasheets to confirm insulation color and material specifications. Ensure compatibility with mating sockets regarding pin length and contact plating. Confirm RoHS compliance status for the specific manufacturing batch before finalizing procurement orders.
Selection Notes
Select this component when a cost-effective 2.54mm double-row header is required for vertical interconnection. Consider the 3A current rating and 110VDC voltage limit during circuit design. Verify that the black thermoplastic housing meets environmental requirements for the intended application environment.
Part Context
This connector is part of the EconoStik product line from Amphenol Communications Solutions. The series provides economical interconnect solutions for various commercial and industrial markets. It serves as a standard board-to-board connection point within larger assembly structures.
Replacement Considerations
Compatible substitutes include other 2.54mm double-row headers with matching pin counts and vertical orientation. Ensure replacement parts maintain identical current ratings and through-hole termination styles for direct interchangeability.
