Product Detailed Parameters
- Description：CONN HEADER VERT 32POS 2.54MM
- Series：EconoStik™ 10129381
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：32
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：0.450" (11.43mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

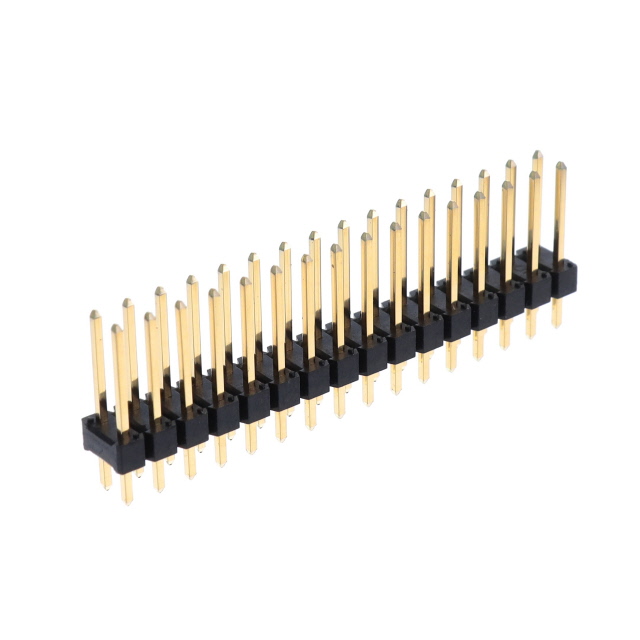

The Amphenol ICC (FCI) part number 10129381-932001BLF is a 32-position double-row header connector from the EconoStik series. It features a 2.54 mm pitch and is designed for vertical, board-to-board applications. The connector utilizes a thermoplastic housing in black color and supports a current rating of 3 A with a voltage rating of 110 VDC. Contact materials consist of copper alloy with gold plating, ensuring reliable electrical performance.
Feature Summary
- Vertical orientation facilitates standard PCB mounting configurations.
- Double-row design accommodates high-density interconnect requirements.
- Thermoplastic insulation provides structural stability and flame resistance.
Applications
- General purpose electronic assemblies
- Industrial control systems
- Medical equipment interfaces
- Telecommunications hardware
Procurement Notes
Verify the specific suffix BLF against official Amphenol documentation to confirm material composition and plating specifications. Ensure compatibility with mating receptacles regarding pin count and row configuration. Cross-reference datasheet revision dates to confirm compliance with current environmental standards such as RoHS before finalizing procurement orders.
Selection Notes
Select this component when a vertical, double-row header with a 2.54 mm pitch is required for board-to-board connections. Consider the 3 A current rating and 110 VDC voltage limit for circuit design constraints. Verify that the black thermoplastic housing meets thermal and mechanical requirements for the intended operating environment.
Part Context
This connector belongs to the EconoStik series by Amphenol Communications Solutions, formerly FCI. The series is engineered for cost-effective, reliable interconnect solutions in commercial electronics. Amphenol acquired FCI in 2016, integrating its product lines into the Amphenol ICC division to support information and communication markets.
Replacement Considerations
Direct substitutes must match the 32-pin, double-row, 2.54 mm pitch, and vertical orientation. Verify identical current ratings and housing materials. Consult Amphenol official cross-reference lists for validated replacements.
