10129381-932003BLF

Overview

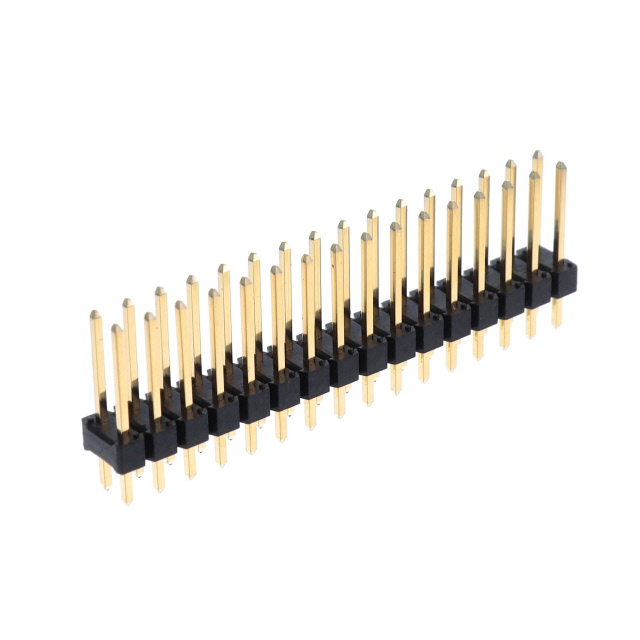

The Amphenol ICC (FCI) 10129381-932003BLF is a 32-position EconoStik series header connector designed for board-to-board applications. It features a 2.54 mm pitch and operates at a rated current of 3A with a voltage rating of 110VDC. The component utilizes vertical through-hole termination and black thermoplastic insulation. It is engineered for an operating temperature range of -55°C to 105°C and meets UL94 V-0 material flammability standards.

Feature Summary

• Vertical board-to-board interconnection via through-hole pins
• Thermoplastic housing with UL94 V-0 flame retardancy
• EconoStik series design for standard density mounting

Applications

• General electronic circuit boards
• Industrial control systems
• Consumer electronics assemblies

Procurement Notes

Verify the specific manufacturer part number against official Amphenol ICC documentation to confirm availability and compliance status. Ensure that procurement channels provide valid traceability records. Confirm that the received components match the specified pin count, pitch, and orientation requirements before integration into production lines.

Selection Notes

Select this component when a 32-pin vertical header is required for low-cost, high-density PCB connections. The 2.54 mm spacing accommodates standard wire gauges and traces. Consider the 3A current rating and 110VDC limit to ensure electrical safety within the target application environment.

Part Context

This connector belongs to the Amphenol FCI EconoStik family, which provides reliable interconnect solutions for commercial and industrial markets. The brand transition from FCI to Amphenol ICC maintains the product lineage while integrating broader manufacturing capabilities for signal integrity and power management support.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
