Product Detailed Parameters

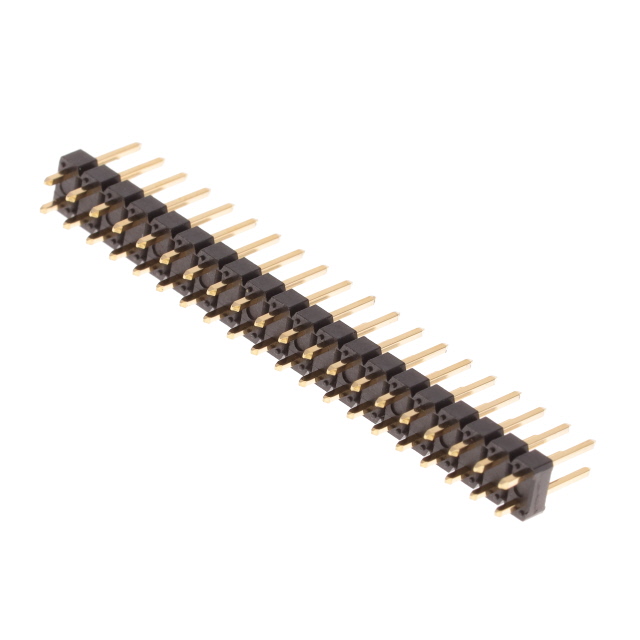

- Description：CONN HEADER VERT 40POS 2.54MM
- Series：EconoStik™ 10129381
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：40
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：0.450" (11.43mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129381-940001BLF is a vertical through-hole header from the EconoStik series. It features a 2x20 position configuration with a 0.100 inch (2.54mm) pitch. The connector utilizes copper alloy contacts and black thermoplastic insulation rated UL94 V-0. It supports a current rating of 3A and a voltage rating of 110VDC, operating within a temperature range of -55°C to 105°C.
Feature Summary
- Vertical board-to-board or cable connection design
- Cuttable solder bulk through-hole construction
- Thermoplastic insulation with UL94 V-0 flammability rating
Applications
- General electronic interconnects
- Industrial equipment signal routing
- Consumer electronics assembly
Procurement Notes
Verify the specific pin count and row configuration against project requirements before procurement. Confirm that the 2.54mm pitch matches the PCB footprint. Ensure the vertical orientation aligns with mechanical constraints. Check for RoHS compliance status if required by regulatory standards. Validate the thermal rating against operational environment limits.
Selection Notes
Select this component for applications requiring reliable vertical interconnection with standard 2.54mm spacing. The EconoStik series offers cost-effective solutions for high-volume production. Consider the 3A current rating for power distribution needs. The cuttable feature allows for flexible length customization during assembly processes.
Part Context
This header belongs to the Amphenol FCI EconoStik family, designed for general-purpose connectivity. The brand provides robust interconnect solutions for various industries. This specific model represents a standard vertical header option within their extensive portfolio of board-to-board connectors.
Replacement Considerations
Compatible substitutes include other 2x20 vertical headers with 2.54mm pitch from major manufacturers. Verify mechanical dimensions and contact plating specifications when evaluating alternatives. Ensure electrical ratings meet or exceed original requirements.
