Product Detailed Parameters
- Description：CONN HEADER VERT 50POS 2.54MM
- Series：EconoStik™ 10129381
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：50
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：0.450" (11.43mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

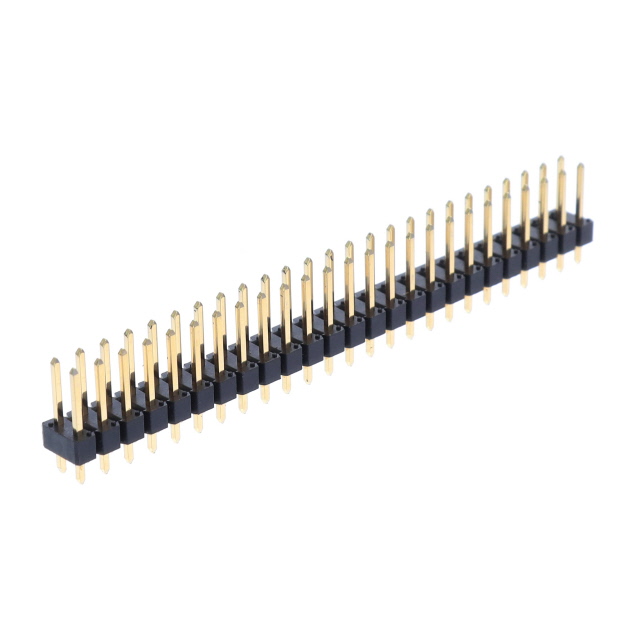

The Amphenol ICC (FCI) 10129381-950001BLF is a vertical through-hole header from the EconoStik series. It features 50 positions with a 2.54mm pitch, designed for board-to-board or cable connections. The connector supports up to 50 mating cycles and utilizes solder termination.
Feature Summary
- Vertical orientation for standard PCB mounting
- Cuttable design allows for flexible length configuration
- Gold-plated contacts ensure reliable signal transmission
Applications
- Industrial control systems
- Test equipment interfaces
- General-purpose board-to-board interconnects
Procurement Notes
Verify the specific contact plating thickness and material composition against the official datasheet to ensure compatibility with your application's environmental requirements. Confirm that the cuttable feature aligns with your assembly process needs.
Selection Notes
Select this component when a cost-effective, vertical header with moderate durability is required. The 2.54mm pitch is standard for many legacy and general applications. Ensure the 50-position count fits your circuit layout constraints.
Part Context
This part belongs to the EconoStik series by Amphenol ICC (FCI), known for providing economical connectivity solutions. The series focuses on reliability in standard industrial environments while maintaining a low profile suitable for various electronic assemblies.
Replacement Considerations
Check for direct substitutes within the same EconoStik family with identical pin counts and pitch. Verify mechanical dimensions and terminal type compatibility before replacing.
