Product Detailed Parameters
- Description：CONN HEADER VERT 50POS 2.54MM
- Series：EconoStik™ 10129381
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：50
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：0.420" (10.67mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

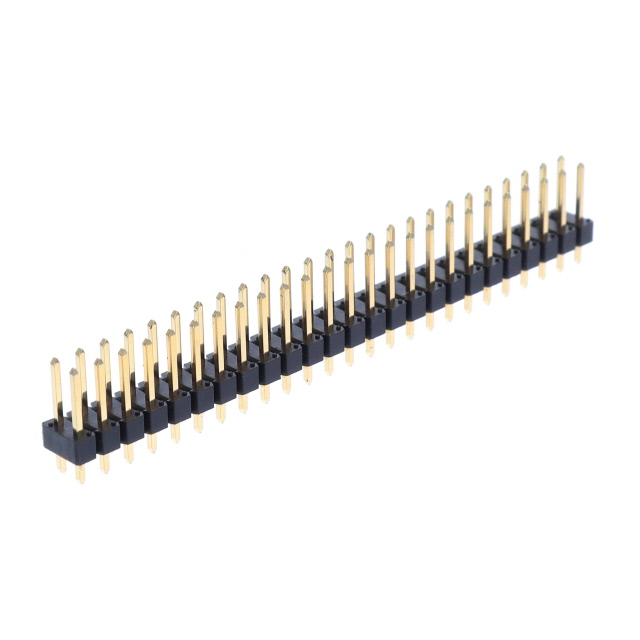

The 10129381-950002BLF is a vertical header connector from the Amphenol ICC (FCI) Econostik series. It features 50 positions with a 2.54 mm pitch and accepts male pin contacts. The component utilizes a through-hole solder termination method for secure PCB mounting. Electrical ratings include a current capacity of 3 A and a voltage rating of 110 VDC. The housing is constructed from black thermoplastic material rated UL 94 V-0 for flammability. Operating temperatures range from -55°C to 105°C, ensuring reliability in standard industrial environments.
Feature Summary
- Vertical pin strip design for board-to-board interconnection
- Through-hole solder termination for robust mechanical stability
- Thermoplastic housing with UL 94 V-0 flammability rating
- Gold-plated contact surfaces for signal integrity
Applications
- General purpose electronic assemblies
- Industrial control systems
- Medical equipment interfaces
- Telecommunications hardware
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin configuration and plating specifications. Ensure compatibility with mating receptacles regarding pitch and row alignment. Confirm that the thermal profile during assembly meets the specified operating temperature limits without damaging the thermoplastic insulation.
Selection Notes
Select this component when a vertical, right-angle header is required for low-voltage signal transmission. The 2.54 mm pitch accommodates standard wire harnesses and mating connectors. Consider the 3 A current rating for power distribution needs within the defined voltage constraints. Verify that the through-hole footprint matches the target PCB layout requirements.
Part Context
This part belongs to the Econostik line of headers produced by Amphenol ICC (FCI). The series is designed for cost-effective, high-volume applications requiring reliable electrical connections. The product falls under the broader category of rectangular connectors and pin strips, serving as a fundamental interconnect solution in various electronic manufacturing sectors.
Replacement Considerations
Cross-reference with part number 10129382-950004BLF for alternative configurations within the same manufacturer family. Ensure any substitute maintains identical 2.54 mm pitch, 50-position count, and vertical orientation. Verify that the replacement part shares the same UL 94 V-0 rating and current handling capabilities.
