Product Detailed Parameters
- Description：CONN HEADER VERT 50POS 2.54MM
- Series：EconoStik™ 10129381
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：50
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：0.538" (13.67mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

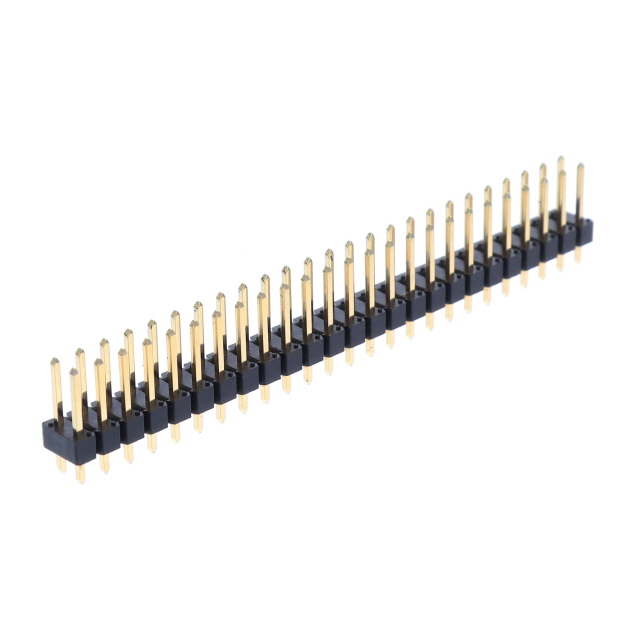

The Amphenol ICC (FCI) part number 10129381-950003BLF is a vertical board-to-board connector header from the EconoStik series. It features a 50-position configuration with a 2.54 mm (0.100 inch) pitch. The connector utilizes through-hole termination and gold-plated contacts to ensure reliable signal transmission. Designed for standard PCB mounting, it supports vertical orientation connections between boards.
Feature Summary
- Vertical pin strip design for direct board-to-board interconnection
- Through-hole solder termination for secure mechanical attachment
- Gold contact plating for enhanced conductivity and corrosion resistance
Applications
- General-purpose board-to-board interconnects
- Industrial control system circuitry
- Consumer electronics internal wiring
Procurement Notes
Verify the specific suffix 'BLF' against the manufacturer's current datasheet to confirm compliance with RoHS and halogen-free requirements. Ensure the ordering quantity aligns with the distributor's bulk packaging standards. Cross-reference the lead time with the manufacturer's official schedule as supply chain conditions may vary.
Selection Notes
Select this component when a low-profile, cost-effective vertical header is required for 2.54 mm pitch applications. Confirm that the PCB hole size matches the 0.100 inch specification. Evaluate the current rating and voltage tolerance against the specific circuit requirements to ensure operational safety within the designated temperature range.
Part Context
This component belongs to the EconoStik series by Amphenol ICC (FCI), which focuses on providing economical and reliable connectivity solutions. The series is widely utilized in various electronic assemblies where standard spacing and robust mechanical performance are prioritized over high-speed signal integrity or extreme environmental sealing.
Replacement Considerations
Compatible substitutes include other 50-position, 2.54 mm pitch vertical headers from the same manufacturer, such as 10129381-912003BLF. Verify that alternative parts maintain identical pin count, pitch, and termination style before integration.
