Product Detailed Parameters

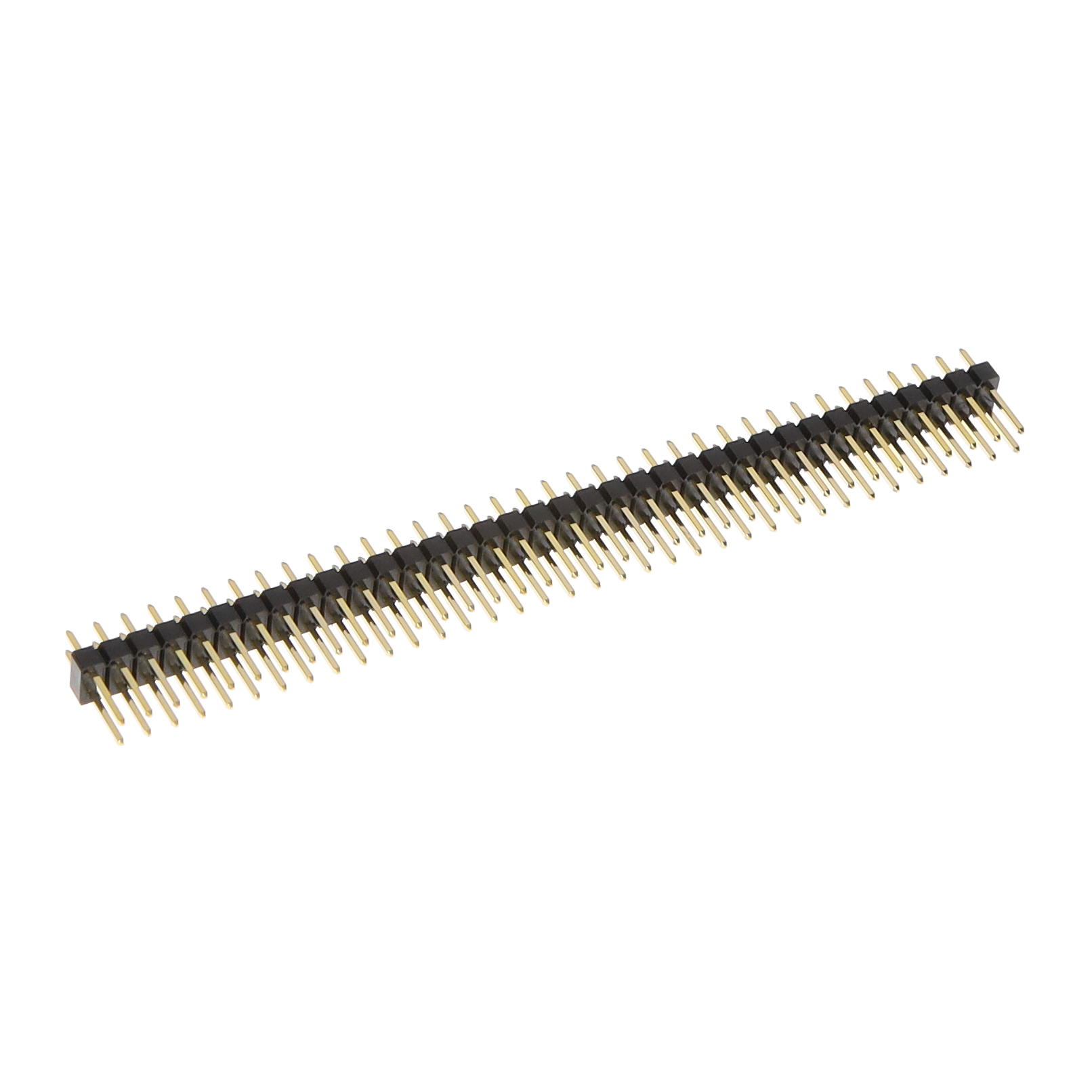

- Description：CONN HEADER VERT 72POS 2.54MM
- Series：EconoStik™ 10129381
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：72
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：0.450" (11.43mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) 10129381-972001BLF is a vertical header connector from the EconoStik series. It features 72 positions with a 0.100 inch (2.54mm) pitch. The connector utilizes through-hole termination and is designed for board-to-board or cable applications. Contact surfaces are gold-plated to ensure reliable electrical performance.
Feature Summary
- Vertical pin configuration for standard PCB mounting
- Gold contact finish for enhanced conductivity
- Thermoplastic insulation material
Applications
- General electronic interconnects
- Industrial control systems
- Consumer electronics assemblies
Procurement Notes
Verify the specific part number against official Amphenol documentation to confirm current availability status. Ensure that the required quantity matches the manufacturer's standard packaging specifications. Confirm RoHS compliance requirements align with project regulations before finalizing procurement orders.
Selection Notes
Select this component when a high-density, low-cost vertical header is required. The 2.54mm pitch allows compatibility with standard PCB layouts. Verify that the mechanical height and current carrying capacity meet the specific circuit design requirements.
Part Context
This connector belongs to the EconoStik family, which focuses on cost-effective solutions for general-purpose interconnect needs. The series offers various pin counts and configurations to support diverse assembly requirements while maintaining consistent electrical characteristics across the product line.
Replacement Considerations
Check for direct substitutes within the same EconoStik series that offer identical pin counts and pitch dimensions. Ensure any replacement maintains the same vertical orientation and through-hole termination style to preserve PCB footprint compatibility.
