Product Detailed Parameters
- Description：CONN HEADER R/A 4POS 2.54MM
- Series：EconoStik™ 10129382
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：4
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

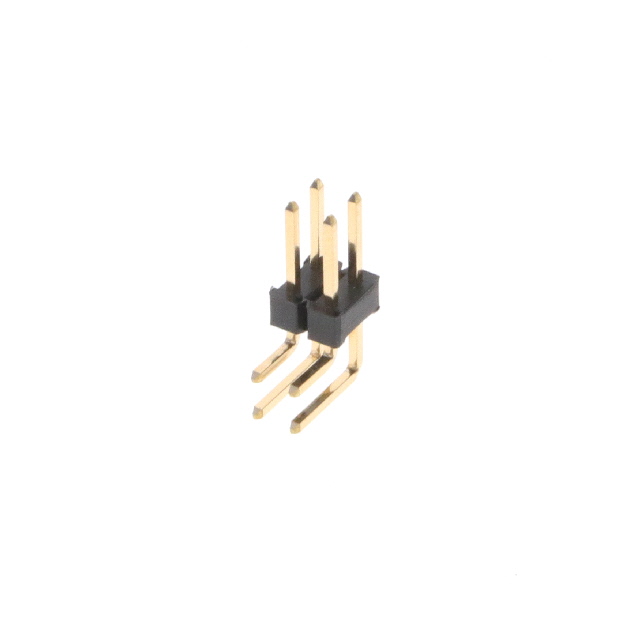

The Amphenol ICC (FCI) 10129382-904001BLF is a right-angle header connector from the EconoStik series. It features 4 positions with a 2.54 mm pitch and utilizes male pin contacts. Designed for through-hole mounting, it operates within a temperature range of -55°C to +105°C. The connector has a current rating of 3 A and a voltage rating of 110 VDC. Contact plating is gold, and the housing is black thermoplastic rated UL94 V-0.
Feature Summary
- Right-angle through-hole design for board-to-board connections
- EconoStik series construction with gold-plated brass contacts
- UL94 V-0 flame retardant black thermoplastic housing
Applications
- General purpose electronic interconnects
- Industrial equipment signal routing
- Medical device circuit integration
Procurement Notes
Verify component authenticity against official Amphenol ICC documentation. Confirm that the specific ordering suffix matches the required contact configuration and housing color. Ensure storage conditions maintain integrity prior to soldering. Check for end-of-life status or alternative sourcing requirements if production continuity is critical.
Selection Notes
Select this component when a low-profile, right-angle header is required for dense board layouts. The 2.54 mm pitch ensures compatibility with standard PCB spacing. Consider the 3 A current rating for power distribution needs. Verify mechanical clearance for the right-angle orientation during enclosure design.
Part Context
This part belongs to the EconoStik family of connectors, which are designed for cost-effective and reliable interconnect solutions. The series emphasizes robust mechanical performance and consistent electrical characteristics across various industrial applications. It represents a standard solution for general-purpose signal and power transmission.
Replacement Considerations
Cross-reference with other 4-position, 2.54 mm pitch right-angle headers from the same manufacturer. Verify identical pin count, pitch, and mounting style before substitution. Ensure thermal and current ratings meet or exceed original specifications.
