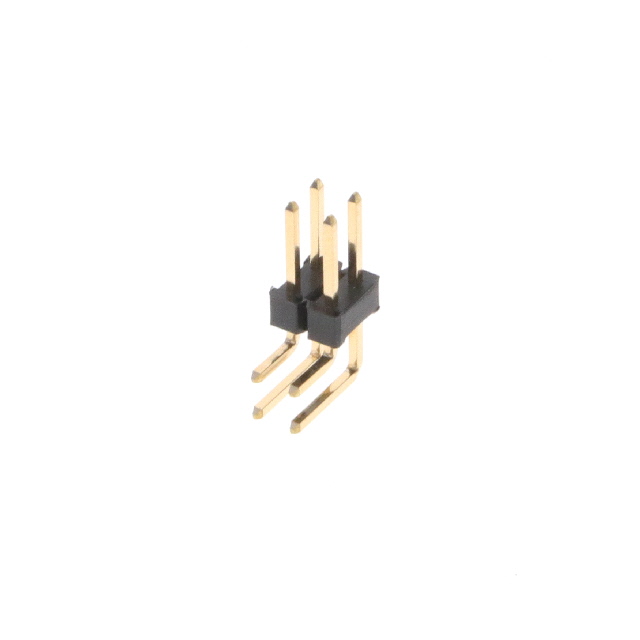

10129382-904002BLF

$0.05

Description：CONN HEADER R/A 4POS 2.54MM
Series：EconoStik™ 10129382
Mfr：Amphenol ICC (FCI)
Package：Bulk

SKU:278650579387 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER R/A 4POS 2.54MM
Series：EconoStik™ 10129382
Mfr：Amphenol ICC (FCI)
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：4
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：0.090" (2.29mm)
Overall Contact Length：-
Insulation Height：-
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：110VDC

Download product information

10129382-904002BLF

Overview

The Amphenol ICC (FCI) part number 10129382-904002BLF is an EconoStik series header connector designed for board-to-board applications. It features a right-angle, through-hole mounting style with a 2.54 mm pitch and 2 rows of contacts, totaling 4 positions. The connector utilizes male pin contacts with gold plating and operates within a temperature range of -55°C to +105°C. Rated for 3 A current, it meets UL 94 V-0 flammability standards and supports up to 50 mating cycles.

Feature Summary

EconoStik series design optimized for reliable board-to-board interconnects
Right-angle through-hole termination for efficient PCB layout integration
Gold-plated male pin contacts ensuring stable signal transmission
Supports up to 50 mating cycles for repeated assembly requirements

Applications

Industrial control systems
Test equipment interfaces
General board-to-board connections

Procurement Notes

Verify the specific suffix BLF against official datasheets to confirm housing color and material specifications. Confirm availability status as lead times may vary. Ensure compatibility with mating receptacles regarding row count and pin configuration. Check RoHS compliance requirements against project specifications before finalizing procurement orders.

Selection Notes

Select this component when a low-profile, right-angle header is required for industrial or test environments. The 2.54 mm pitch ensures standard spacing compatibility. Consider the 3 A current rating and 50-cycle durability for applications requiring moderate electrical loads and limited re-mating frequency. Verify thermal operating limits align with system constraints.

Part Context

This connector belongs to the EconoStik family produced by Amphenol ICC (FCI), formerly Framatome Connectors International. The brand provides cost-effective interconnect solutions for data communication and industrial markets. FCI was acquired by Amphenol in 2016, integrating its high-speed and power connector technologies into the broader Amphenol portfolio.
