Product Detailed Parameters

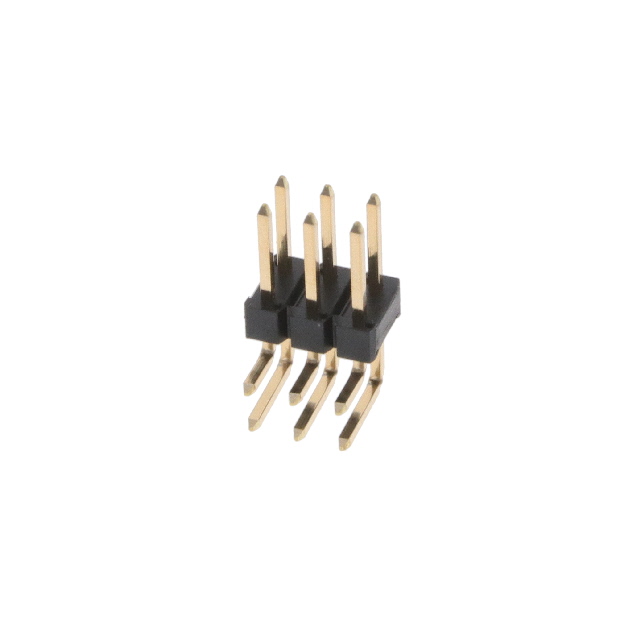

- Description：CONN HEADER R/A 6POS 2.54MM
- Series：EconoStik™ 10129382
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129382-906002BLF is a rectangular header connector belonging to the Econostik series. It features a male pin contact type with a 0.100 inch (2.54mm) mating pitch. The component is designed for through-hole termination and offers a cuttable form factor. It consists of two rows and provides six positions for circuit interconnection.
Feature Summary
- Features a cuttable header design allowing for flexible board layout configurations.
- Utilizes a standard 2.54mm pitch for broad compatibility with industry wiring standards.
- Employs a dual-row arrangement to maximize connection density within compact spaces.
Applications
- Factory automation systems
- Instrumentation equipment
- Internet of Things (IoT) devices
Procurement Notes
Verify the specific supplier source when sourcing this component, as availability may vary across different distributors. Confirm that the received parts match the exact Econostik series designation and pin configuration. Ensure compliance with relevant environmental regulations such as RoHS requirements before final integration into production assemblies.
Selection Notes
Select this connector when a standard 2.54mm pitch is required for reliable signal transmission in industrial environments. The cuttable feature allows designers to customize the length of the header array to fit specific PCB dimensions without wasting material. Consider the through-hole mounting method for robust mechanical stability in applications subject to vibration or physical stress.
Part Context
This component is manufactured by Amphenol ICC (FCI), formerly known as FCI, which was acquired by Amphenol Corporation. The product falls under the Econostik line, a widely recognized series of wire-to-board connectors. These components are integral to the company's portfolio of interconnect solutions serving various electronic markets globally.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Designers should consult official manufacturer channels for potential obsolescence management or equivalent alternative recommendations if this specific item becomes unavailable.
