Product Detailed Parameters

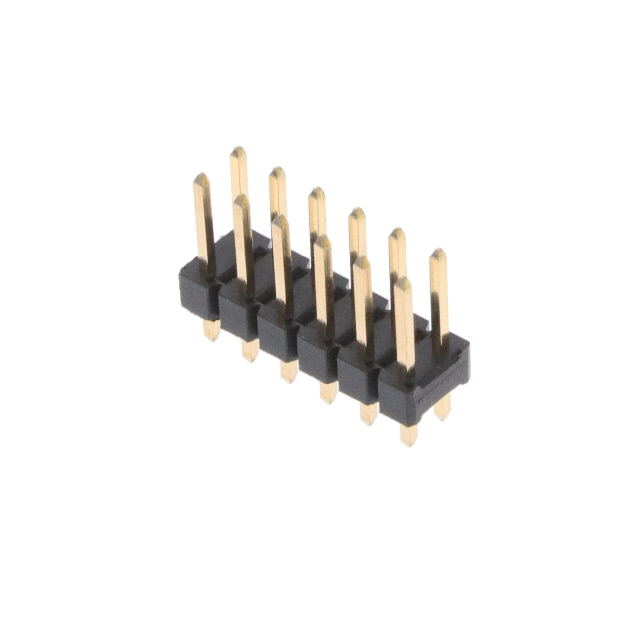

- Description：CONN HEADER R/A 6POS 2.54MM
- Series：EconoStik™ 10129382
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129382-906003BLF is a rectangular connector header designed for board-to-board applications. It features a 2-row configuration with 6 contacts and utilizes a 2.54 mm pitch. The component employs through-hole right-angle termination for secure PCB mounting. Contact materials consist of brass with gold plating to ensure reliable signal transmission. The unit supports a maximum operating temperature of +105°C and carries a current rating of 3A.
Feature Summary
- Right-angle through-hole pin header design
- Gold-plated brass contact construction
- Standard 2.54 mm spacing pitch
Applications
- General electronic interconnects
- Industrial control systems
- Commercial equipment assemblies
Procurement Notes
Verify the specific suffix BLF against official datasheets to confirm packaging type and material specifications. Ensure compatibility with standard surface-mount or through-hole assembly processes. Confirm lead times directly with authorized distributors as manufacturing schedules vary. Cross-reference the full part number to avoid confusion with similar Econostik series variants.
Selection Notes
Select this component for applications requiring right-angle board-to-board connections with a 2.54 mm pitch. Verify that the PCB footprint matches the 6-position, 2-row layout. Consider the 3A current rating and +105°C thermal limit for operational safety. Ensure the gold contact finish meets the required corrosion resistance standards for the intended environment.
Part Context
This component belongs to the FCI Econostik series, now managed under Amphenol ICC following the acquisition of FCI by Amphenol. The Econostik line provides cost-effective, high-density interconnect solutions for various commercial and industrial markets. This specific header variant represents a standard through-hole option within the broader rectangular connector portfolio.
Replacement Considerations
Direct substitutes must match the 2.54 mm pitch, 6-position count, and right-angle through-hole form factor. Verify identical electrical ratings and contact plating specifications before substitution.
