10129382-908001BLF

Overview

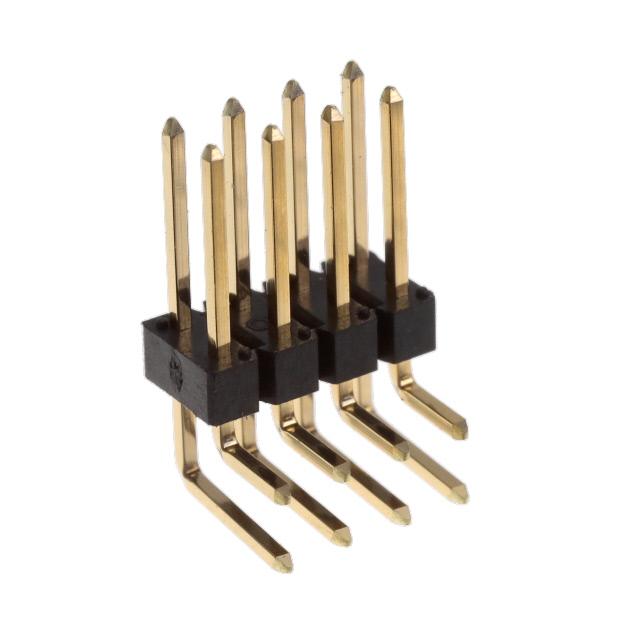

The Amphenol ICC (FCI) part number 10129382-908001BLF is an EconoStik series header connector featuring a right-angle, through-hole mounting configuration. It provides an 8-position single-row interface with a 2.54 mm pitch. The component utilizes gold-plated brass contacts and a black thermoplastic insulation body rated UL94 V-0 for flame resistance. Electrical specifications include a current rating of 3A and a voltage rating of 110VDC, supporting up to 50 mating cycles. The operating temperature range spans from -55°C to +105°C, ensuring reliability in industrial control and test applications.

Feature Summary

• Right-angle design facilitates compact board-to-board connections
• Gold-plated brass contacts ensure signal integrity and corrosion resistance
• Thermoplastic housing offers UL94 V-0 flammability rating
• Through-hole termination supports robust mechanical attachment

Applications

• Industrial control systems
• Test equipment interfaces
• Board-to-board interconnections

Procurement Notes

Verify the specific pin count and row configuration against project requirements, as the EconoStik series includes various position options. Confirm that the 110VDC voltage rating and 3A current capacity align with the target circuit's electrical demands. Ensure the right-angle form factor fits within the available vertical clearance on the printed circuit board layout before finalizing procurement.

Selection Notes

Select this component when a cost-effective, reliable header solution is required for low-voltage digital or power signals. The 2.54 mm pitch is standard for general-purpose electronics, simplifying PCB footprint design. Consider the right-angle orientation if space constraints prevent straight-through mounting. Verify compatibility with mating sockets or cables that match the 2.54 mm grid and contact plating specifications.

Part Context

This connector belongs to the Amphenol FCI EconoStik family, which focuses on providing durable and economical connection solutions. FCI, now part of Amphenol ICC, specializes in connectors for data processing and communication markets. The EconoStik line emphasizes ease of assembly and consistent performance across various industrial and commercial electronic environments.

Replacement Considerations

Compatible substitutes within the same series include 10129379-908001BLF, which shares identical physical dimensions and electrical characteristics but differs in pin count. Ensure any replacement maintains the 2.54 mm pitch and right-angle orientation to preserve PCB compatibility.
